duffymahoney

11” front and rear.

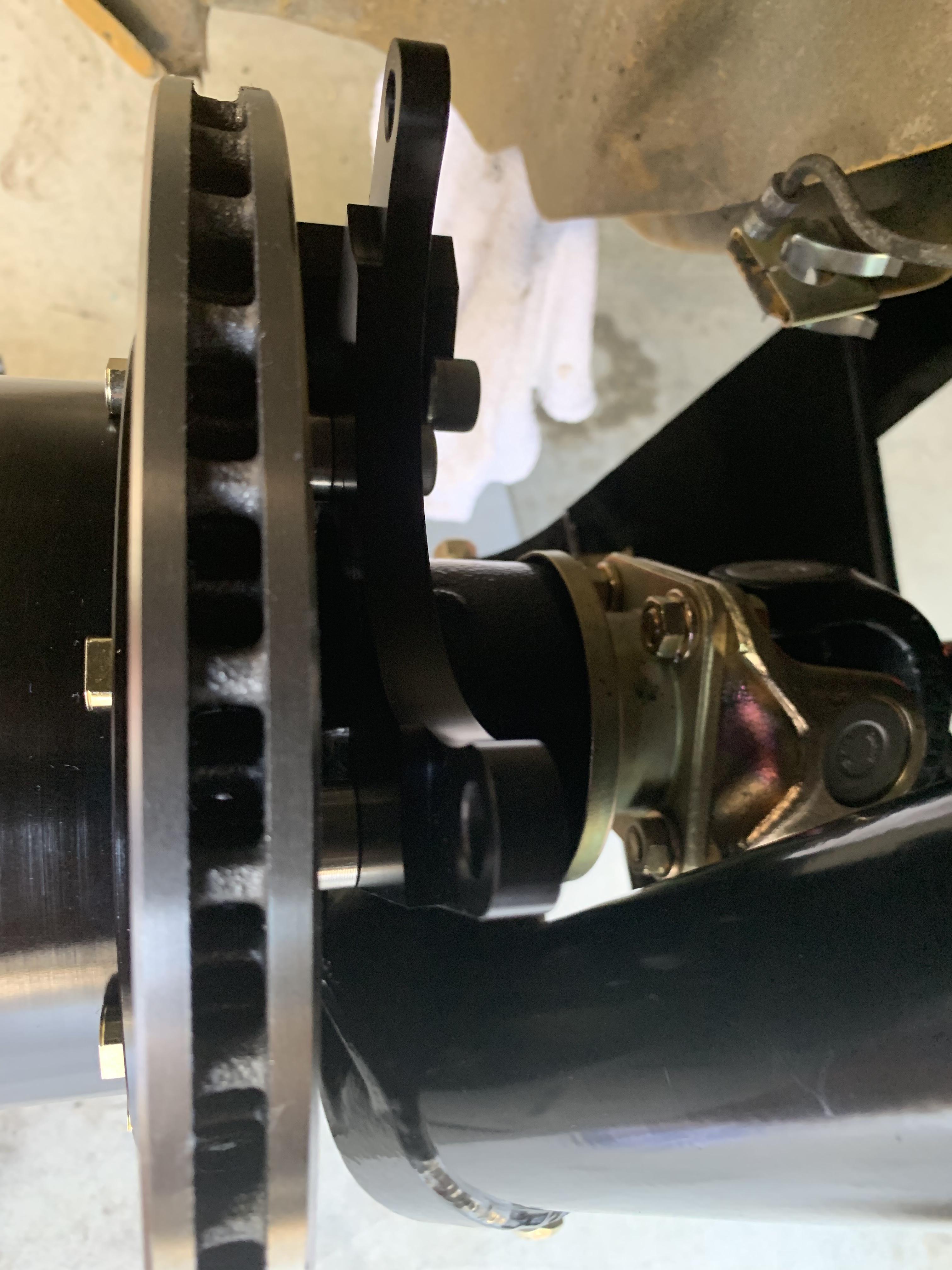

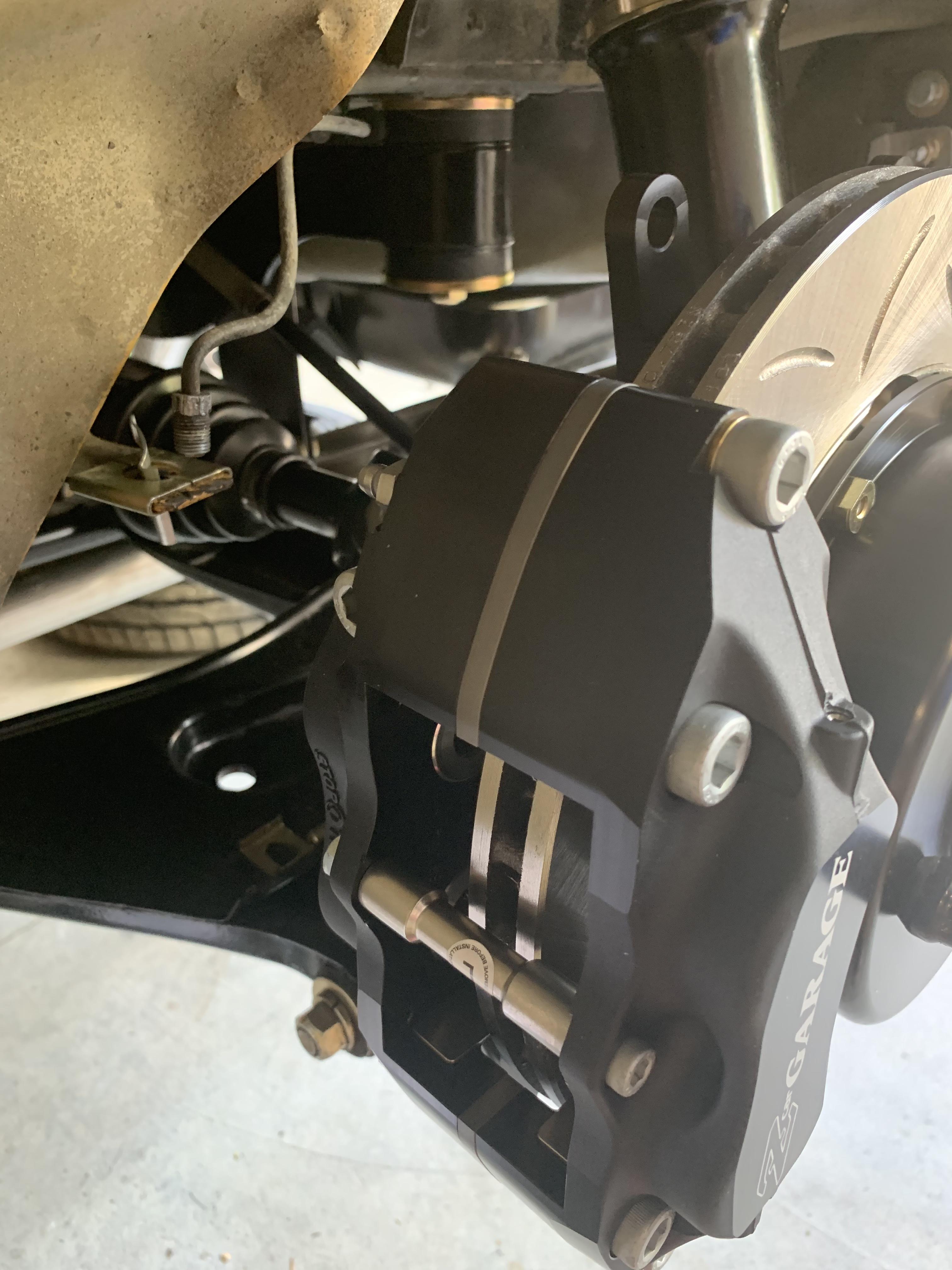

With the calipers they went with, if it was rear trailing it would hit the strut tube. So I’m guessing they were forced to pick forward. Parking brake Caliper goes on the top. For now it’s a wilwood. It’s been a long time since I installed something that was this easy and thought out.

Well I’m assuming stop tech has massive amounts of resources (foundry, their own tooling etc in china..). I was told ground up design. But I would guess off the shelf calipers? Only thing that leads me to think they aren’t is the fact that I had to wait for a batch to come from overseas. Since there were no calipers in the US. The kit gets used on track cars. It requires the stock MC. I bet it’s a exact ratio of front to rear bias. Factoring in caliper size piston size, then pad size then mc pressure front and rear. You could always use a adjustable rear if you wanted.

My z is getting the BIG Brake Kit from zcargarage. I’m so happy with it. Here is my thread on it https://www.classiczcars.com/forums/topic/62261-zcargarage-big-brake-kit/?tab=comments#comment-576731

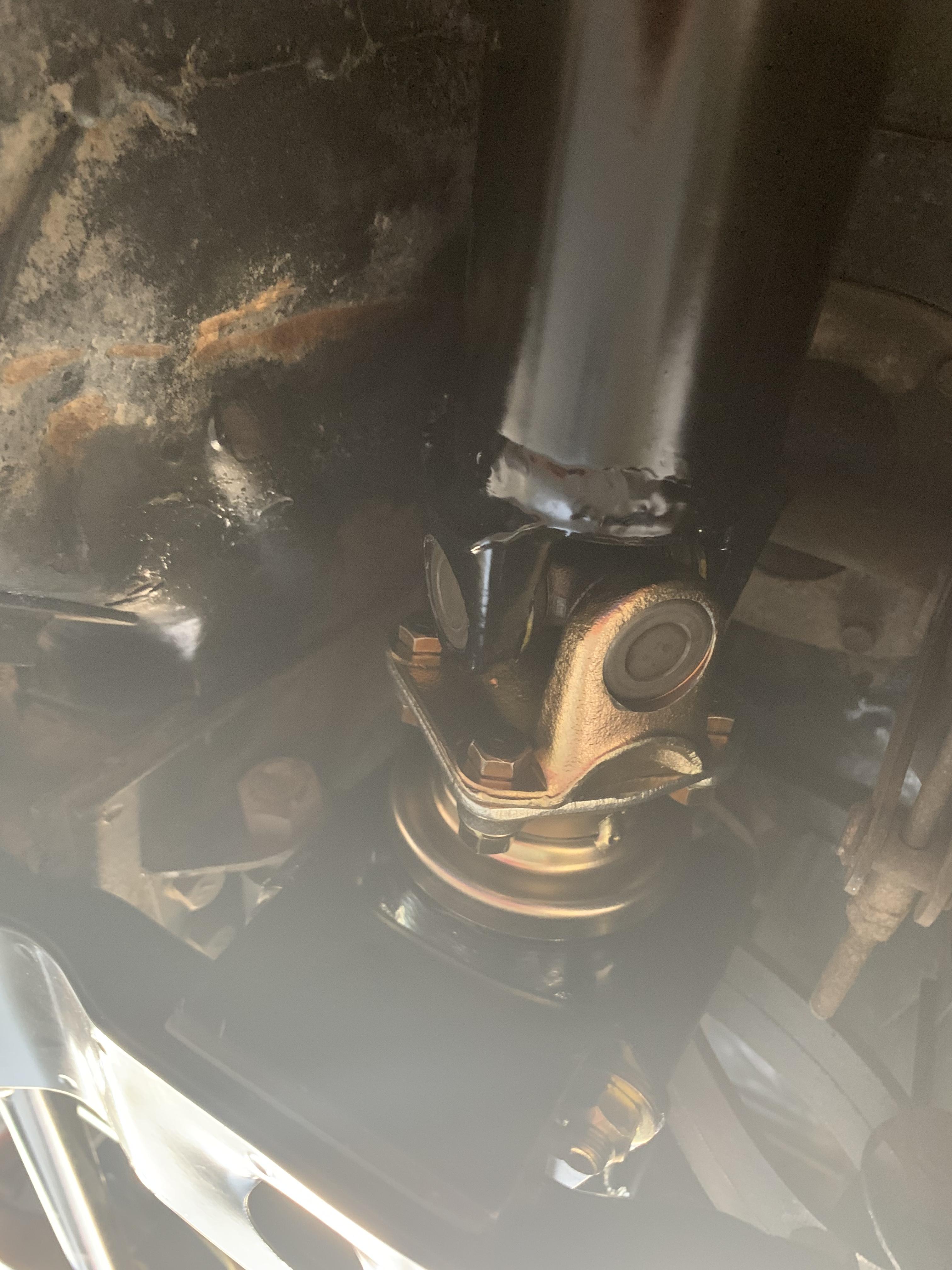

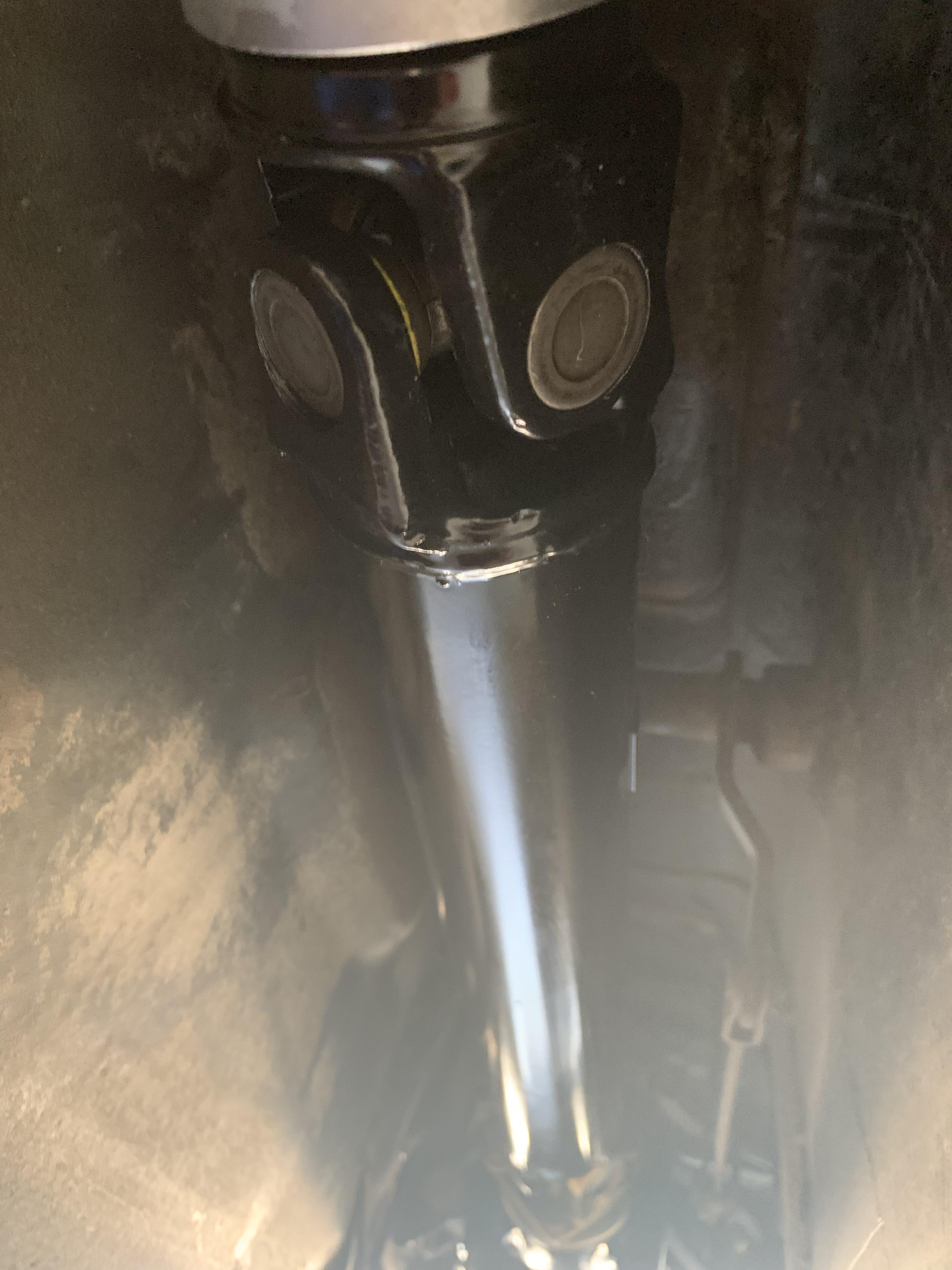

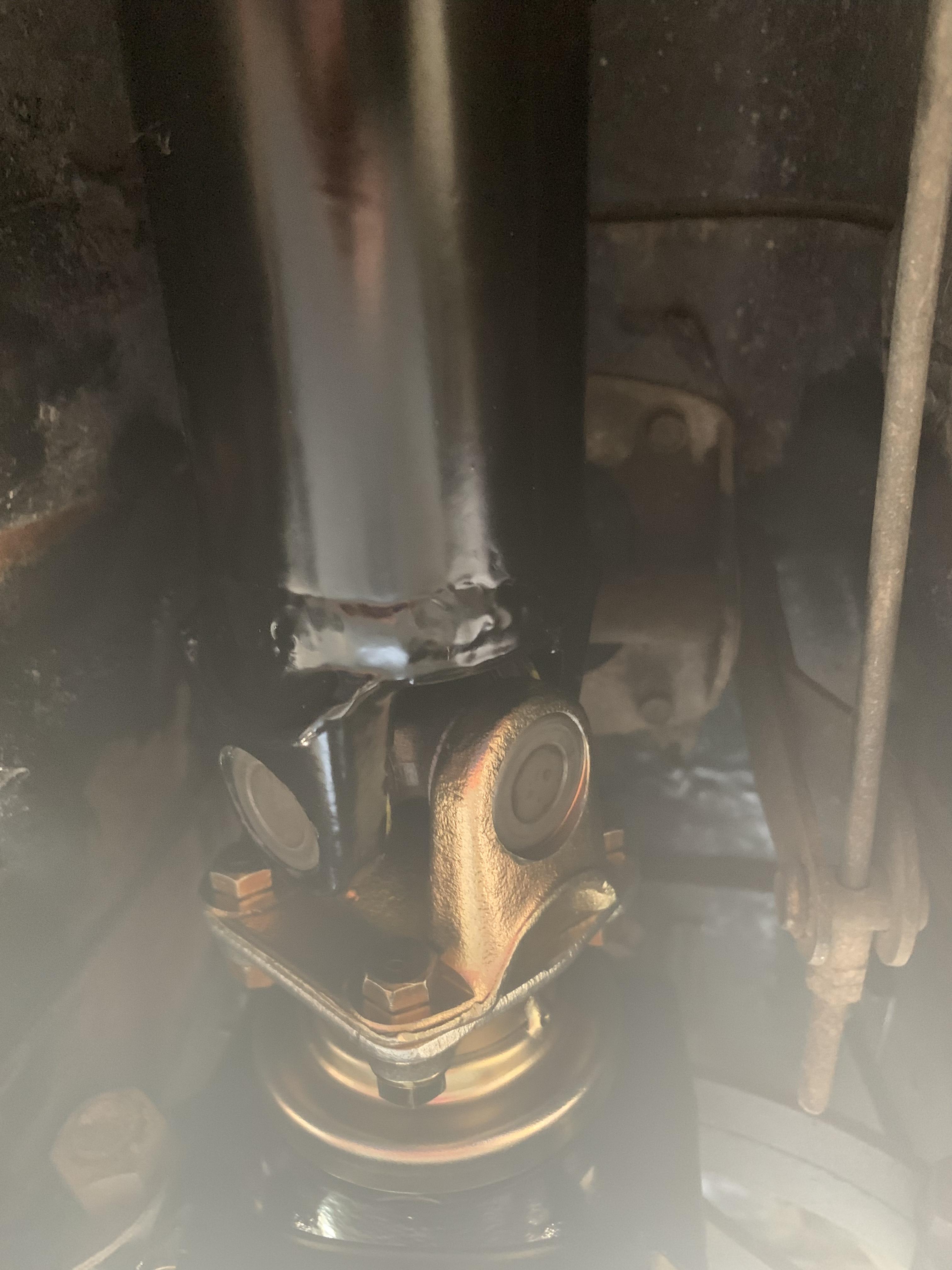

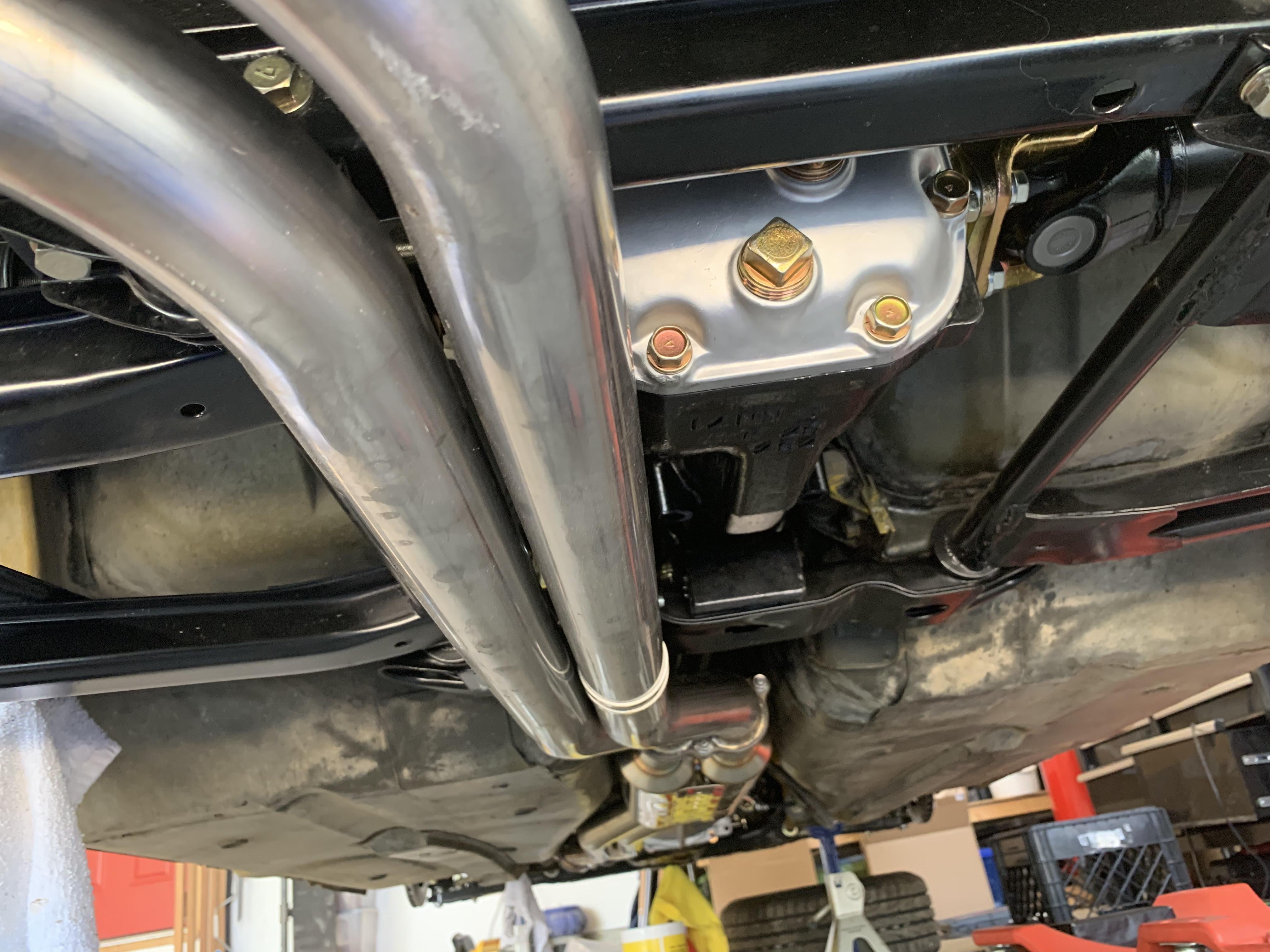

Shorten drive shaft is in. I wish i would have gone 1/8-1/4” longer. Also got the exhaust back hung.

Done for now.

rear wheels clear with ease. Now time to wait for the rest of the parts to come.

Stoptech

I’m blown away by the level of fit and finish and engineering that went into the kit.

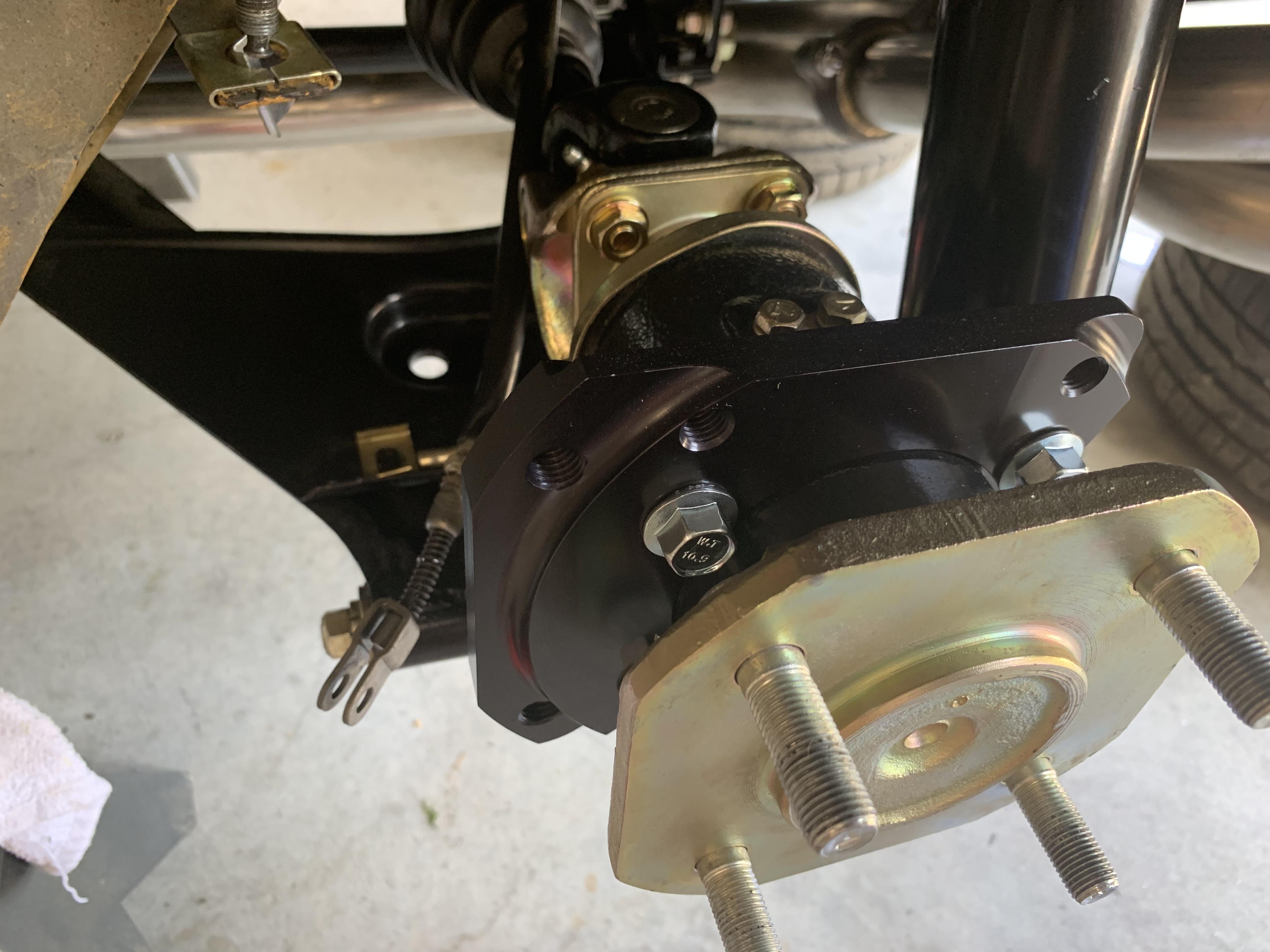

No proportioning valve needed. If you have a rear prop valve like me. It has to be gutted. From looks both front and rear calipers are identical. They have different cast numbers. So there must be a difference. Hopefully finalizing fronts and rears tomorrow. Then waiting on the e brake caliper and pads for the whole kit.

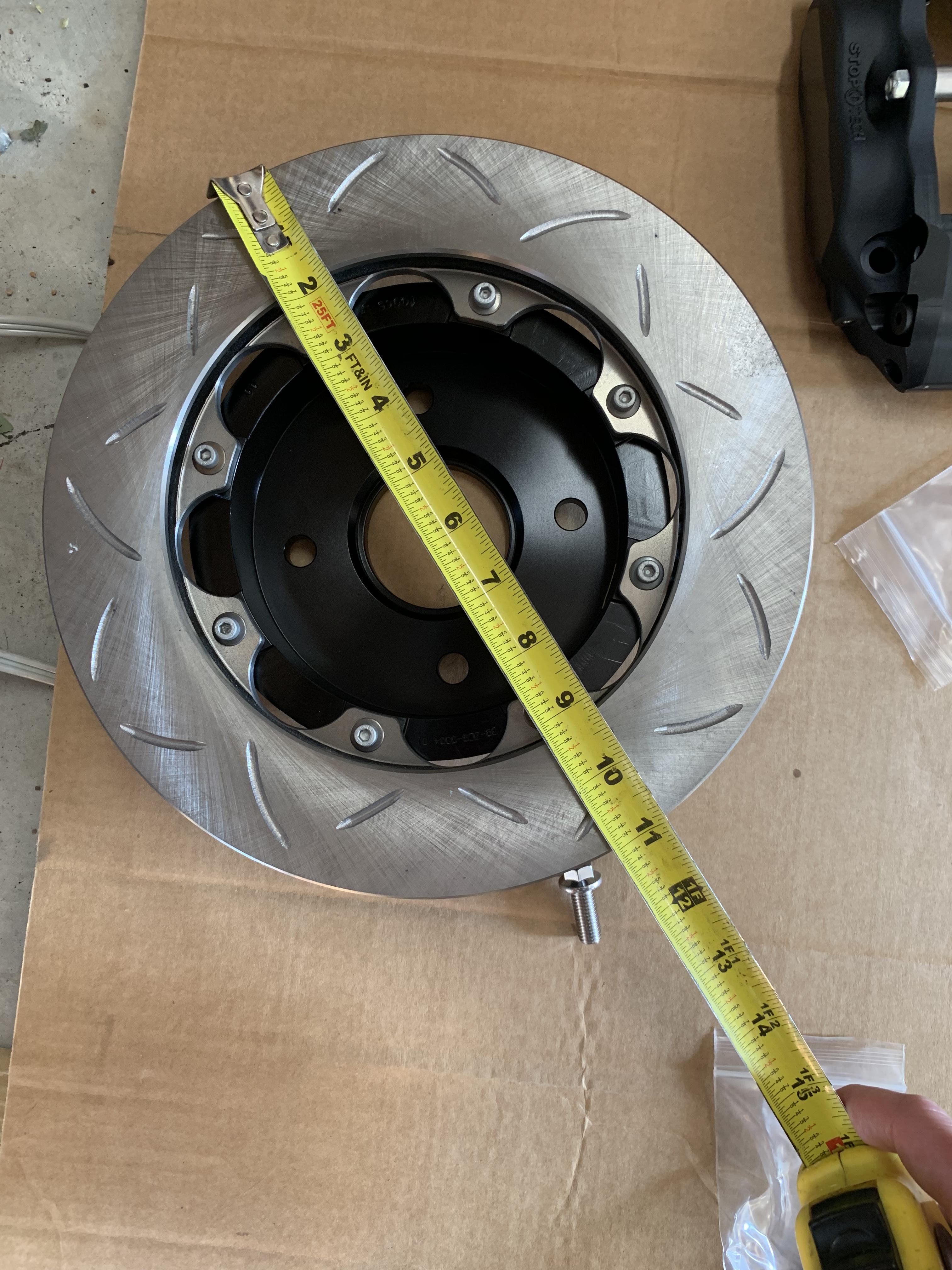

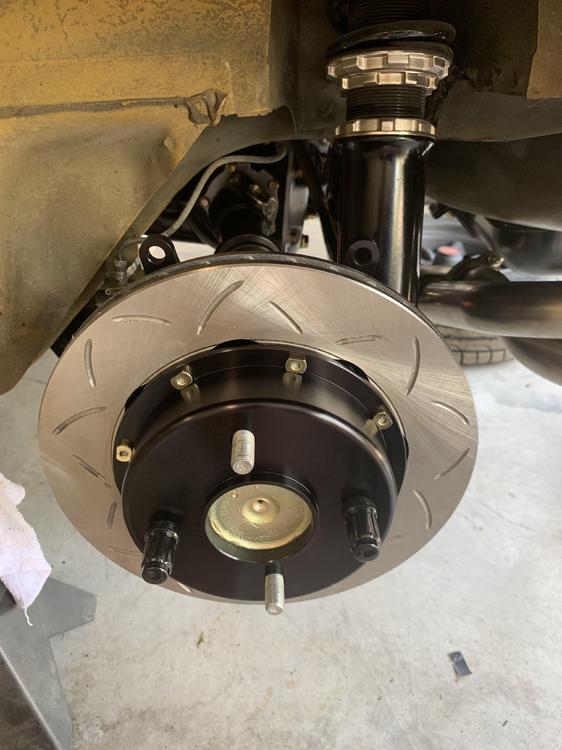

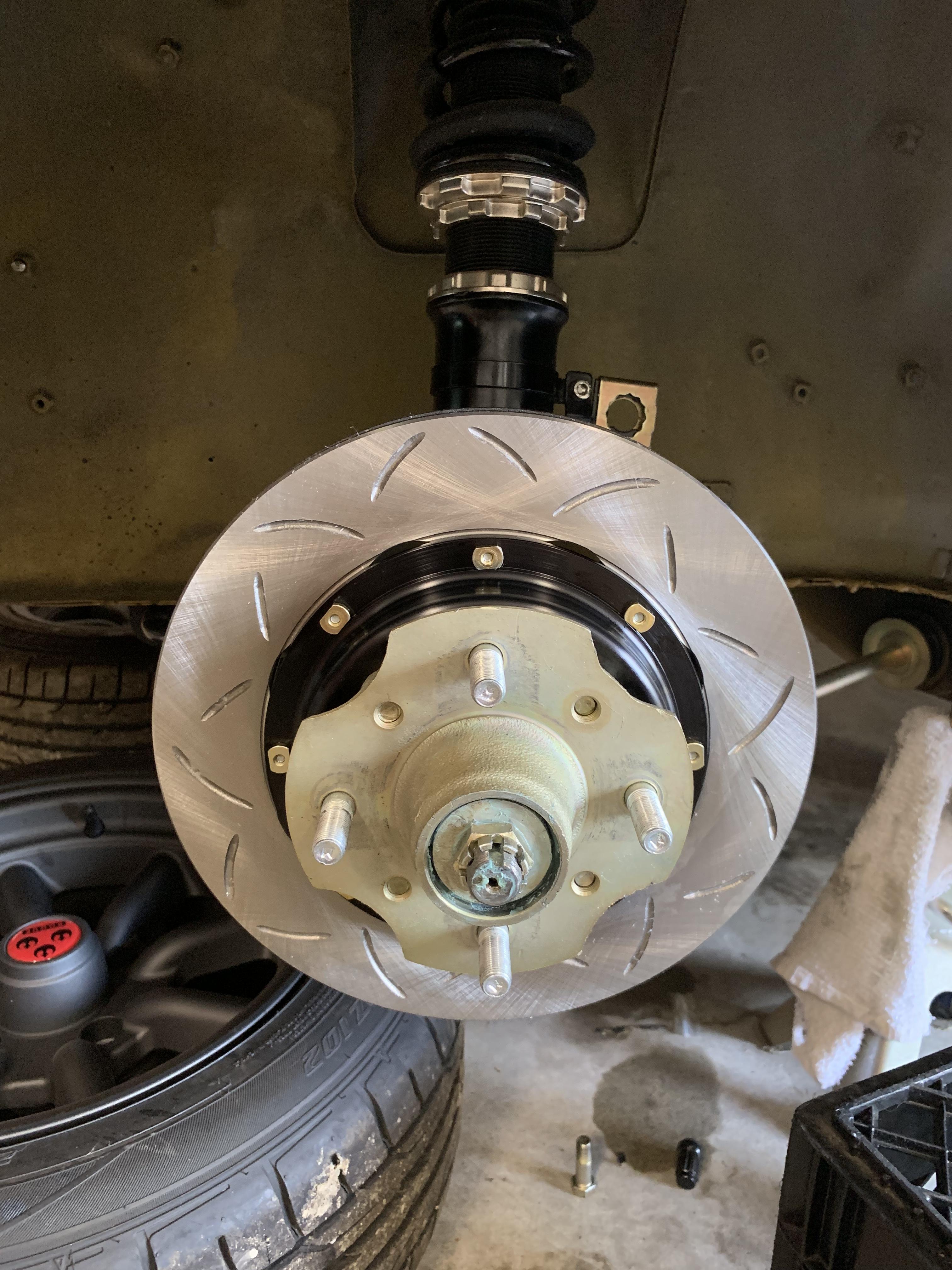

Rotors are 11x20.5mm or so. I have no way to weight them. Most of the kit is installed already. But everything is very very light

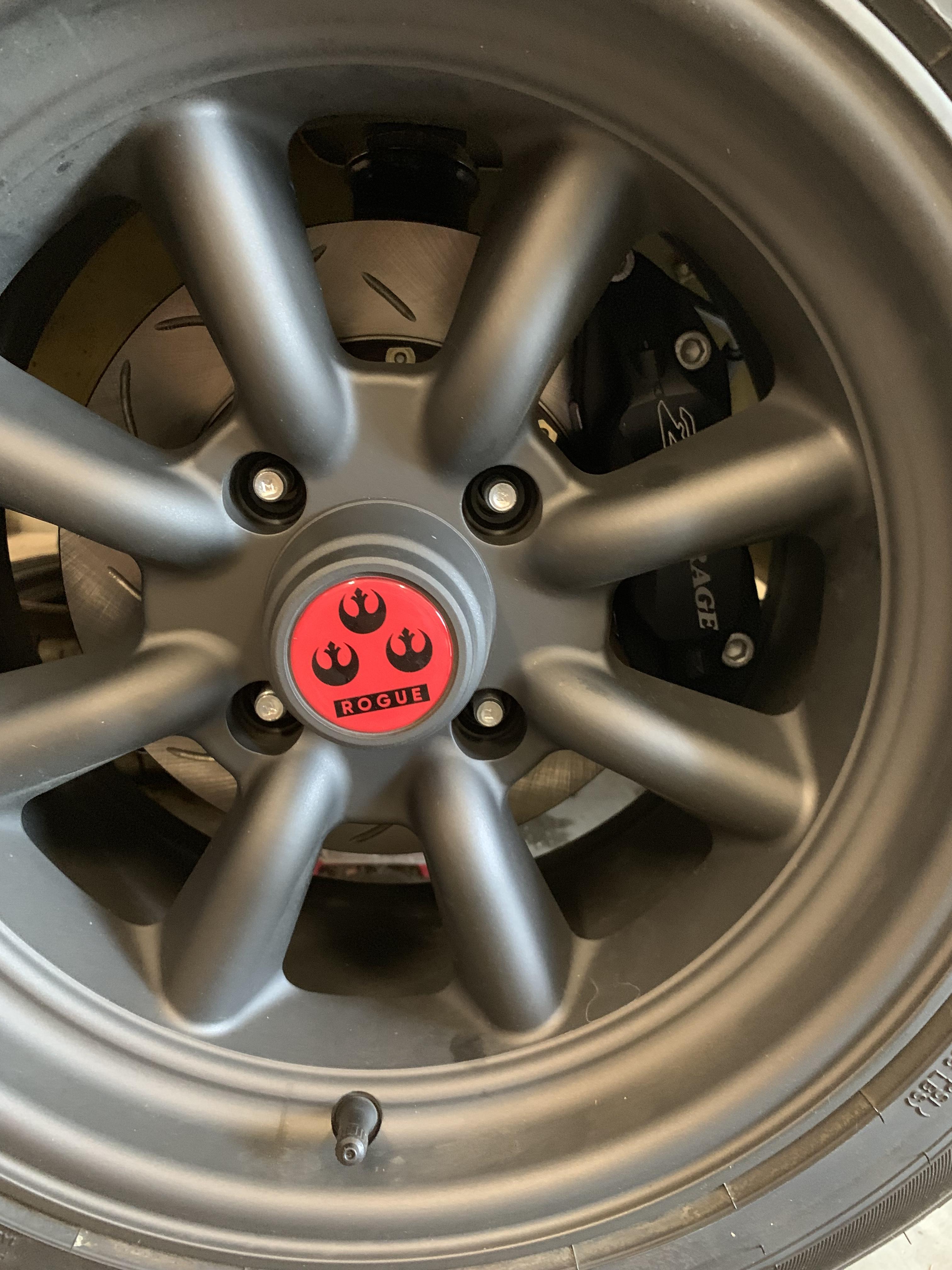

Install and instructions are a breeze. Rota 15x8-0 clear with ease. (Wats are on order)

Emergency brake is currently a wilwood. But will soon be stop tech

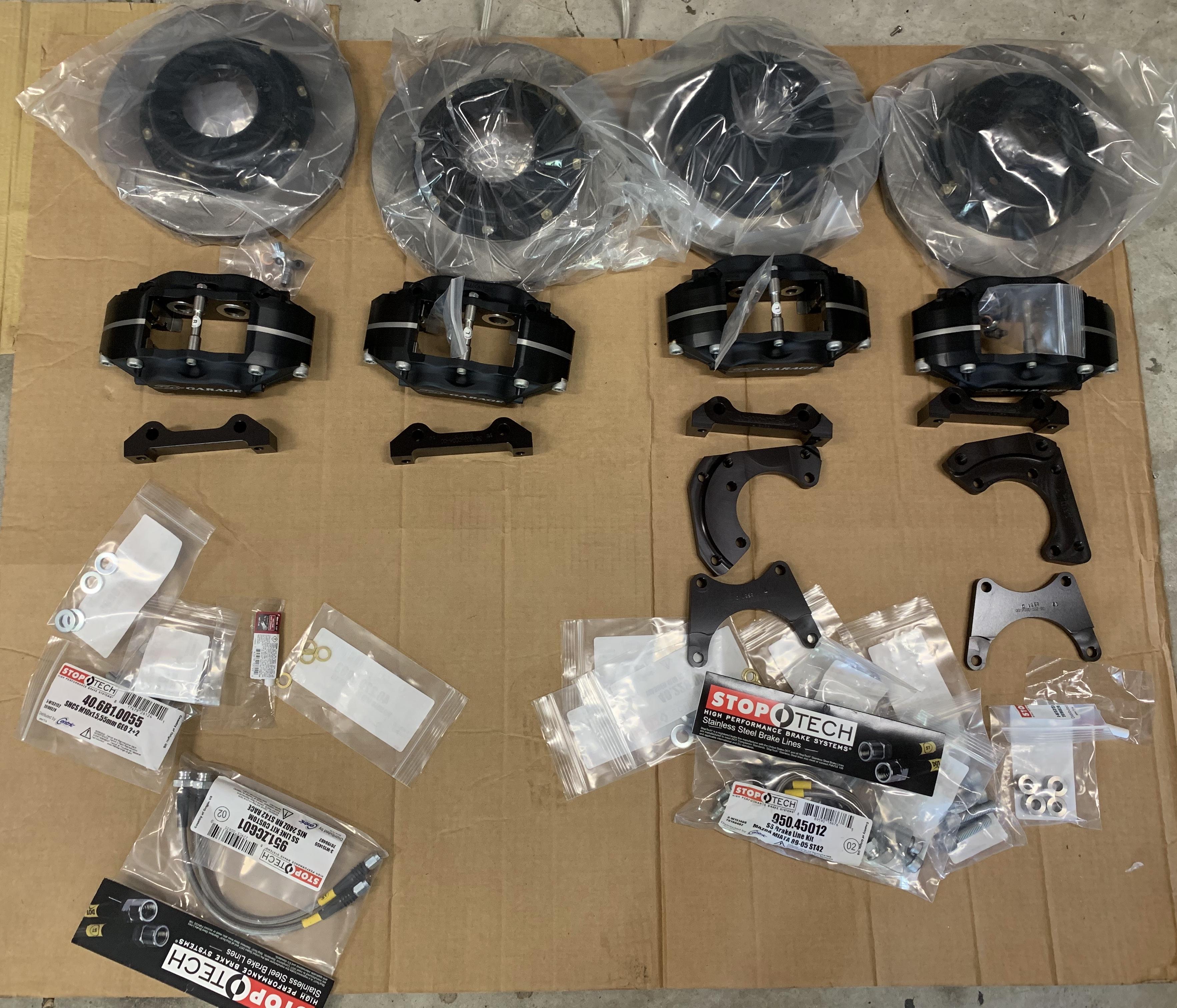

Should accomadate 240-280z. Full kit. Comes with pads. I don’t know if you can pick other types? Includes everything. Even brake fluid.

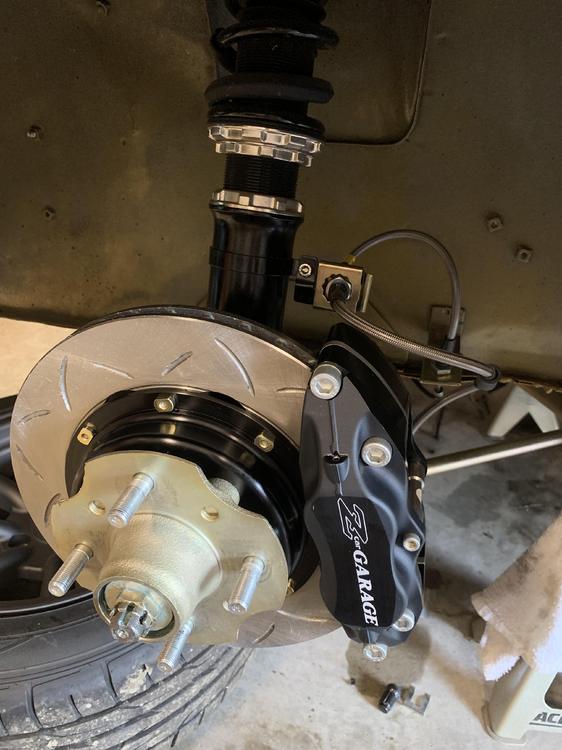

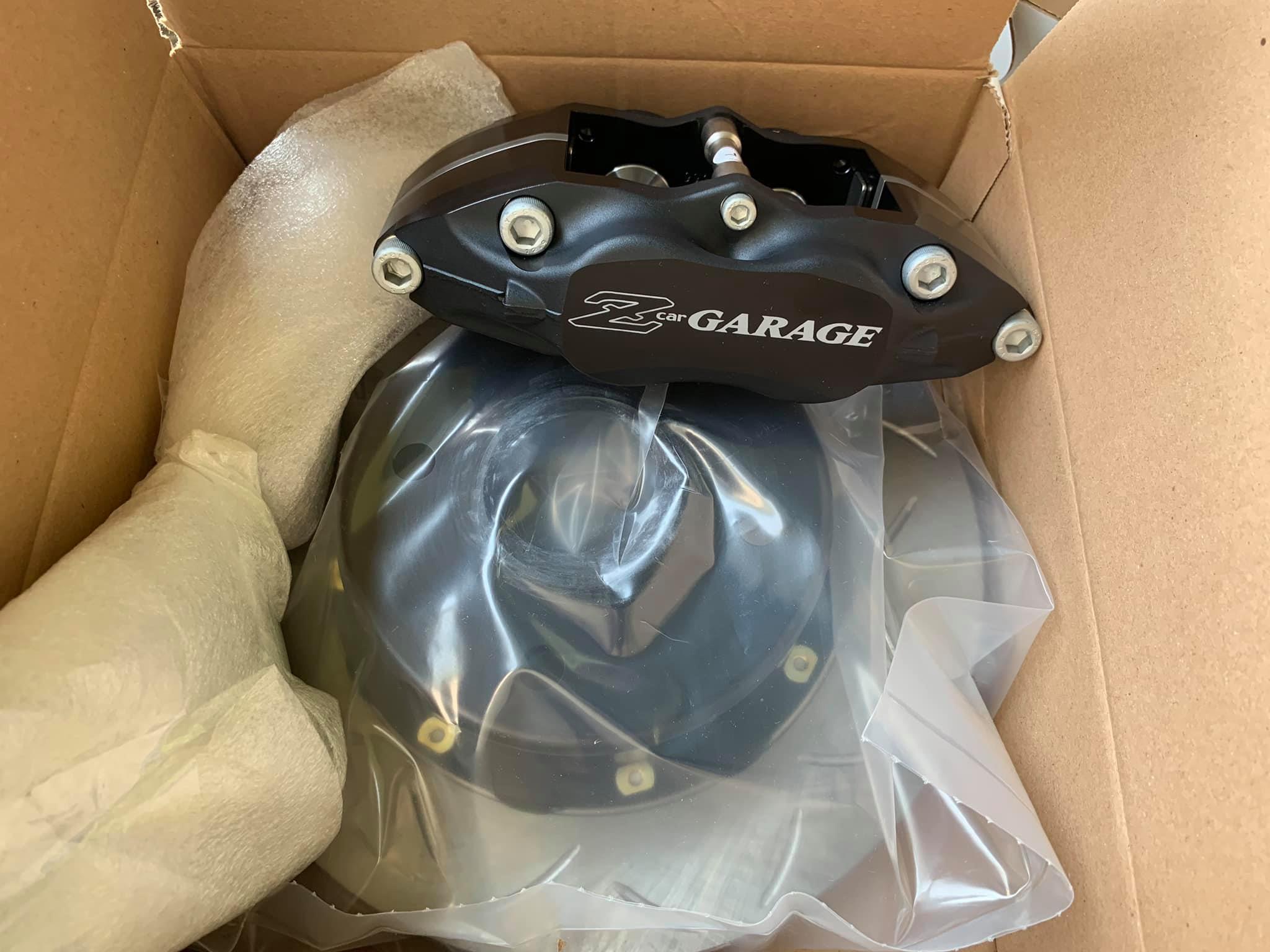

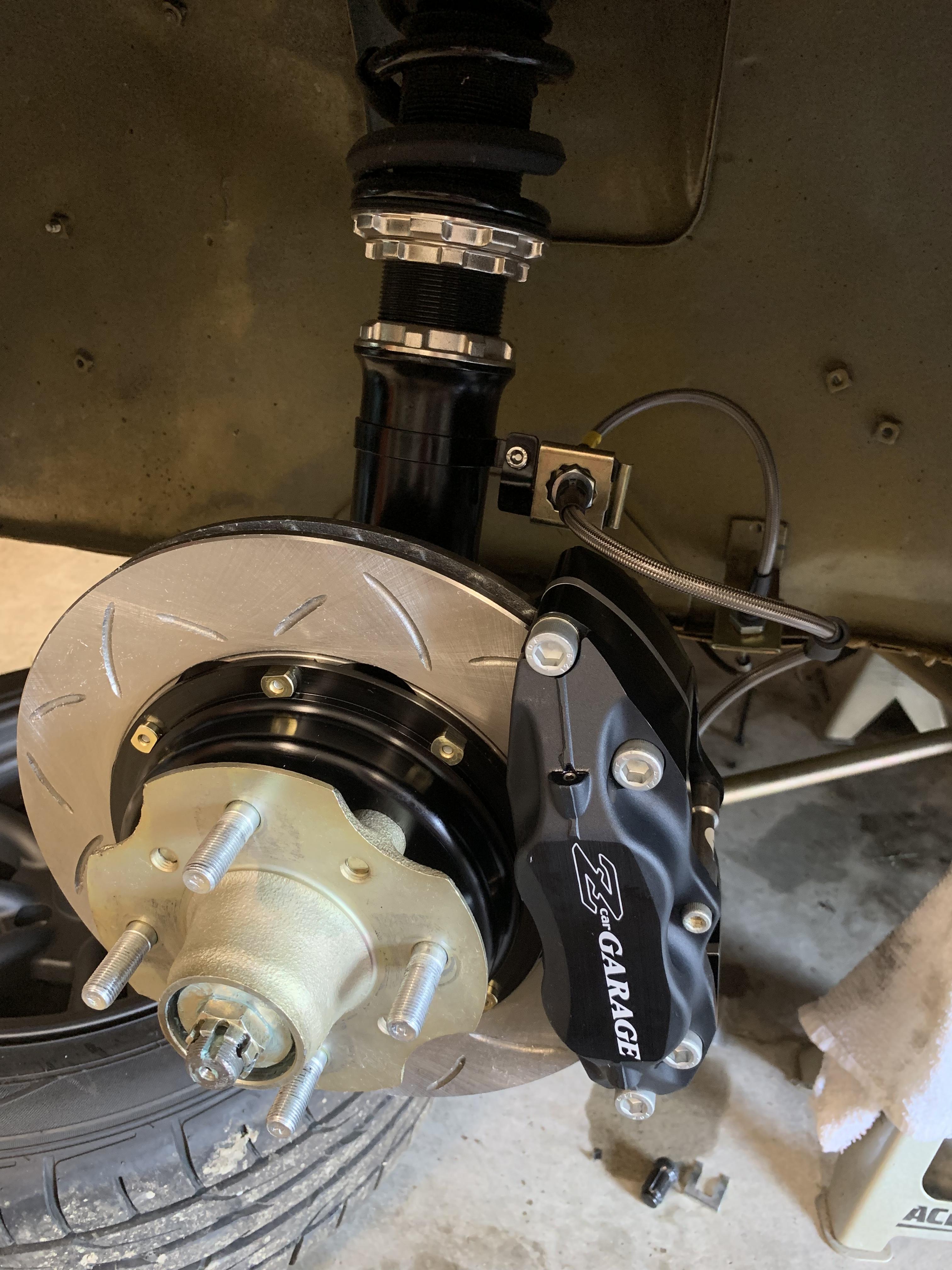

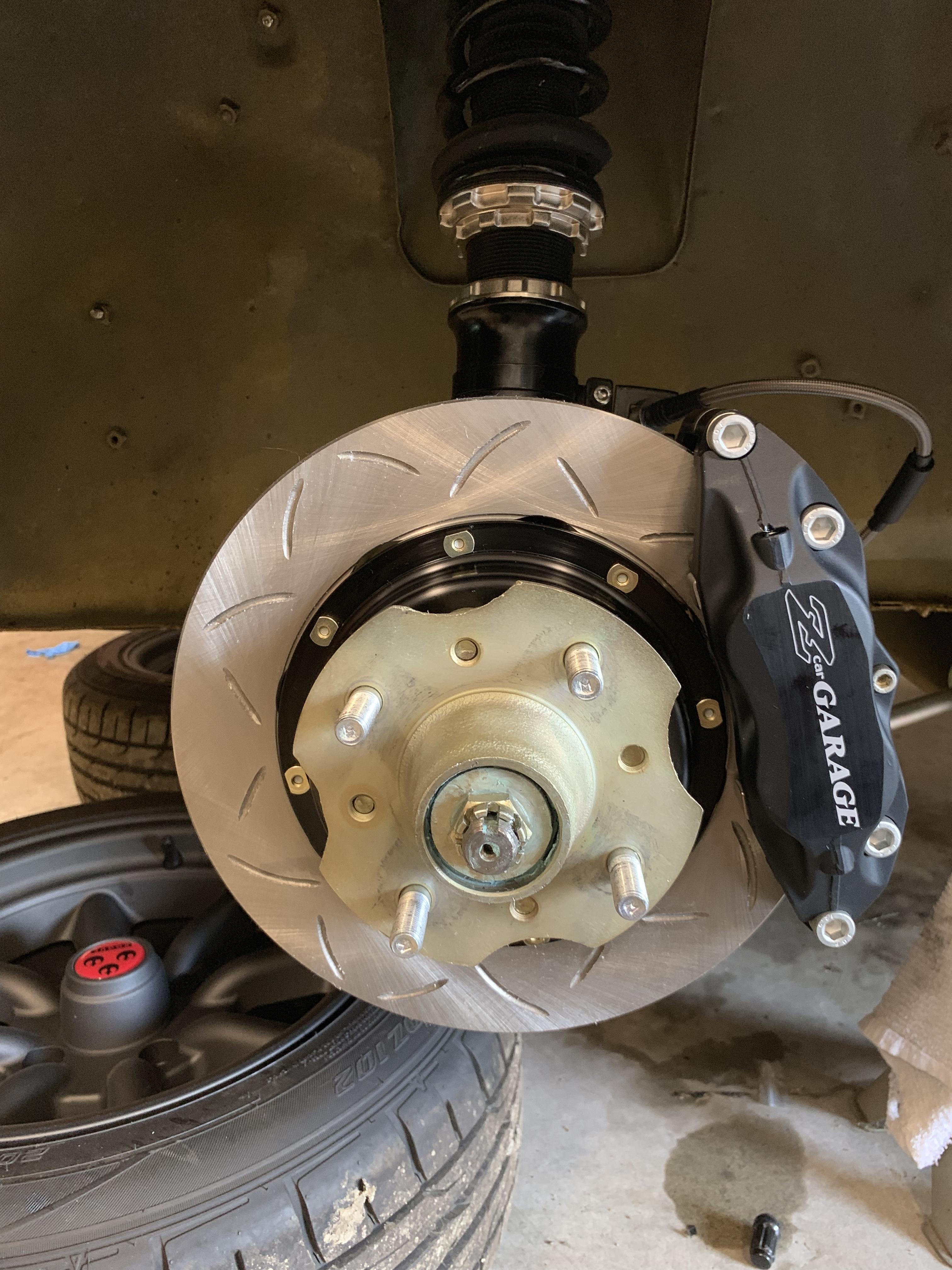

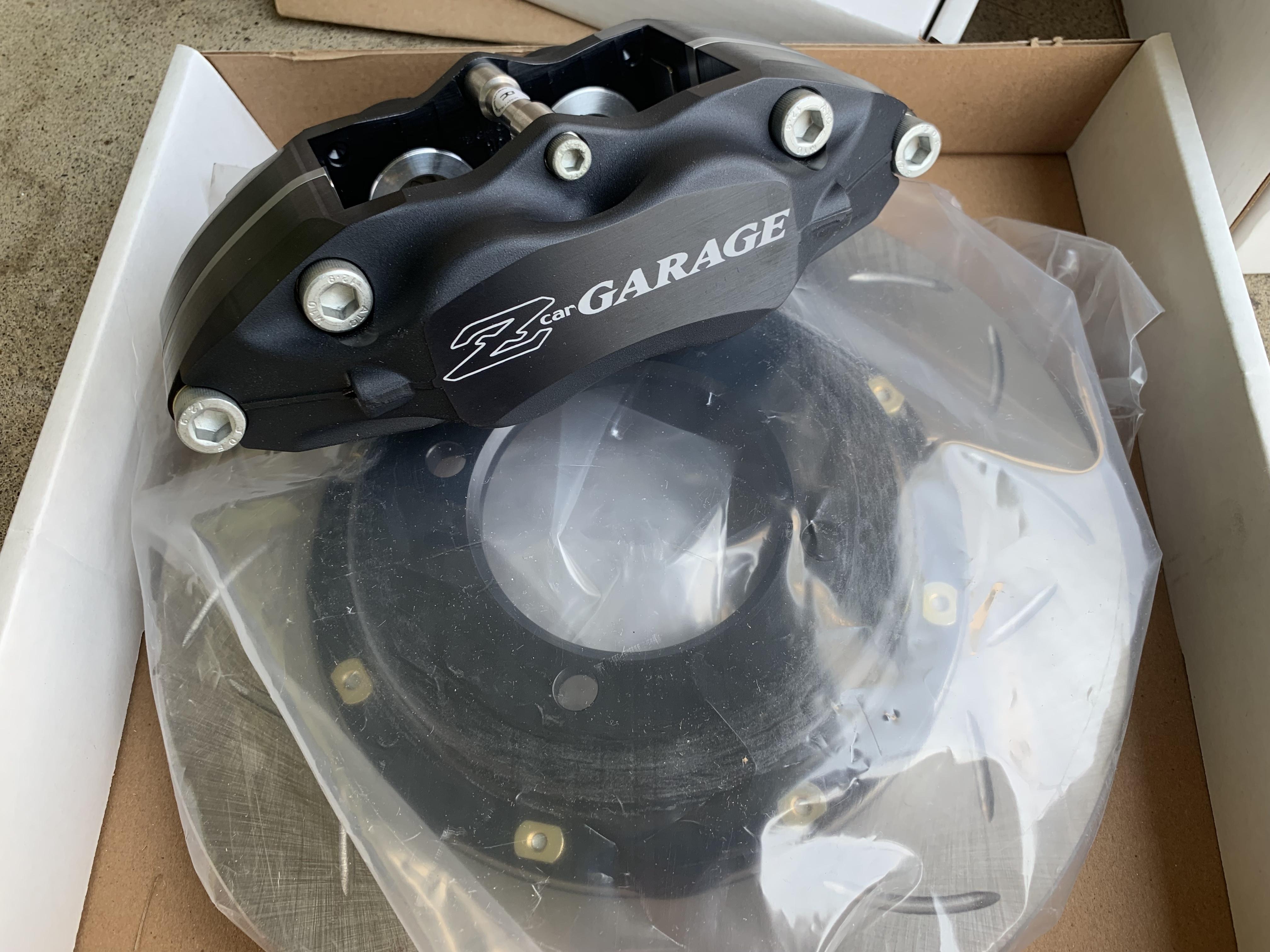

I am blown away by the quality and engineering that went into this Zcargarage BBK (big brake kit) The kit was designed by stoptech engineers and Zcargarage from the ground up for the Z. I am sort of a guinea pig to see if consumers can install this kit. They have amazing detailed 40 page instructions. Which in the car world is rare. I’m stoked to get them installed. Kit comes with everything needed to install and retains stock parking brake and MC. Fits 15x8 wheels as well! So light!

The valve cover changed from 2400 to OHC halfway through 1970. My 1/71 build series 1 has the same one. The valve cover for this time is slightly different from later ones.

That’s an option. I kind of like the goofy series 1 stuff most people don’t know about. Like me, till yesterday Shortening the driveshaft is the easier route. My overall plan with my z is crate everything that I take off and make everything easy to go back to stock with. Like my stock trans could be back in a few hours at most. Stock diff would be the same.

I have a series 1. Which I guess means that my diff is further forward then later years. That’s why the series 1 driveshaft is too long. I will cut down an extra series 1 driveshaft I have.

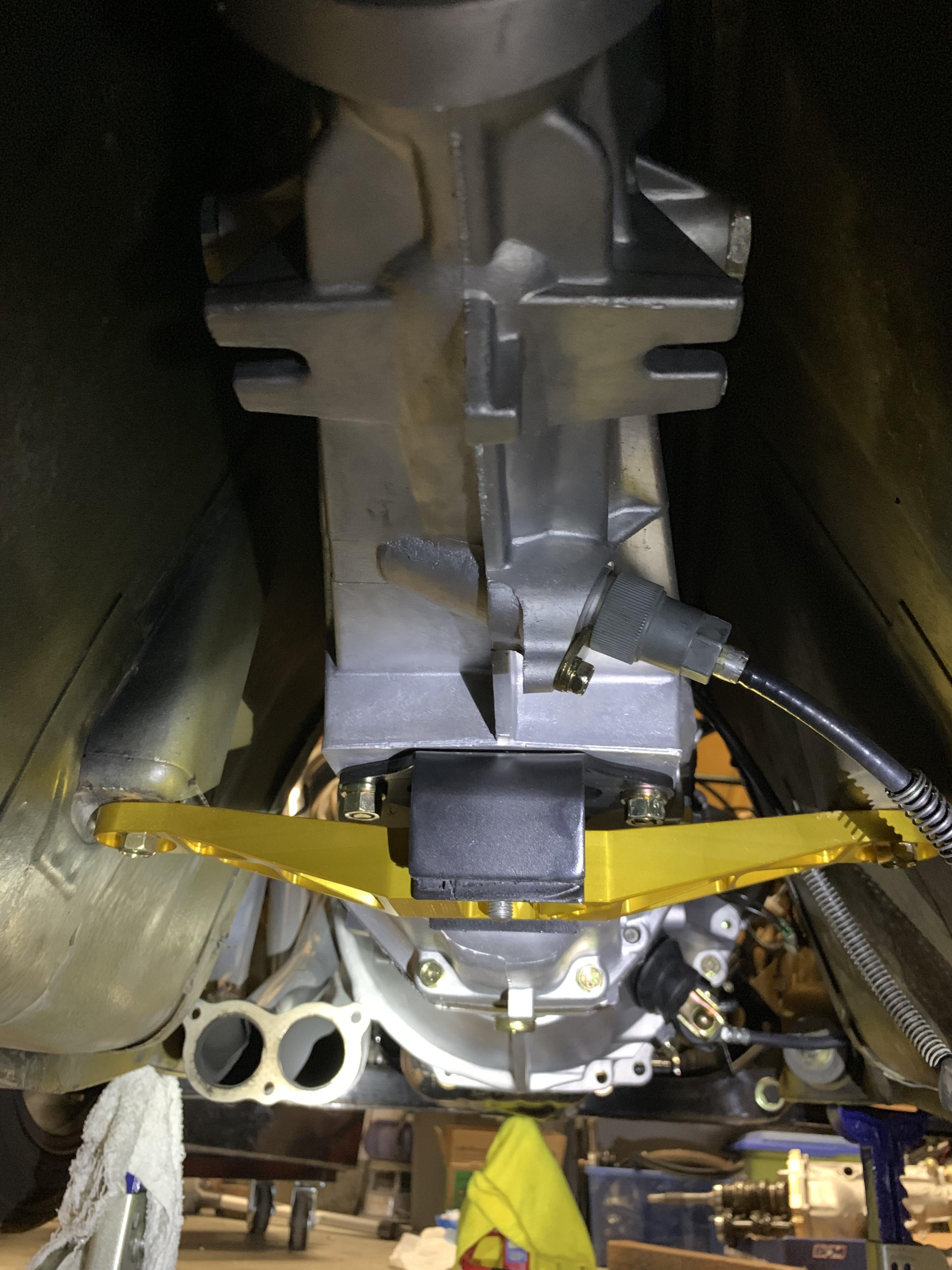

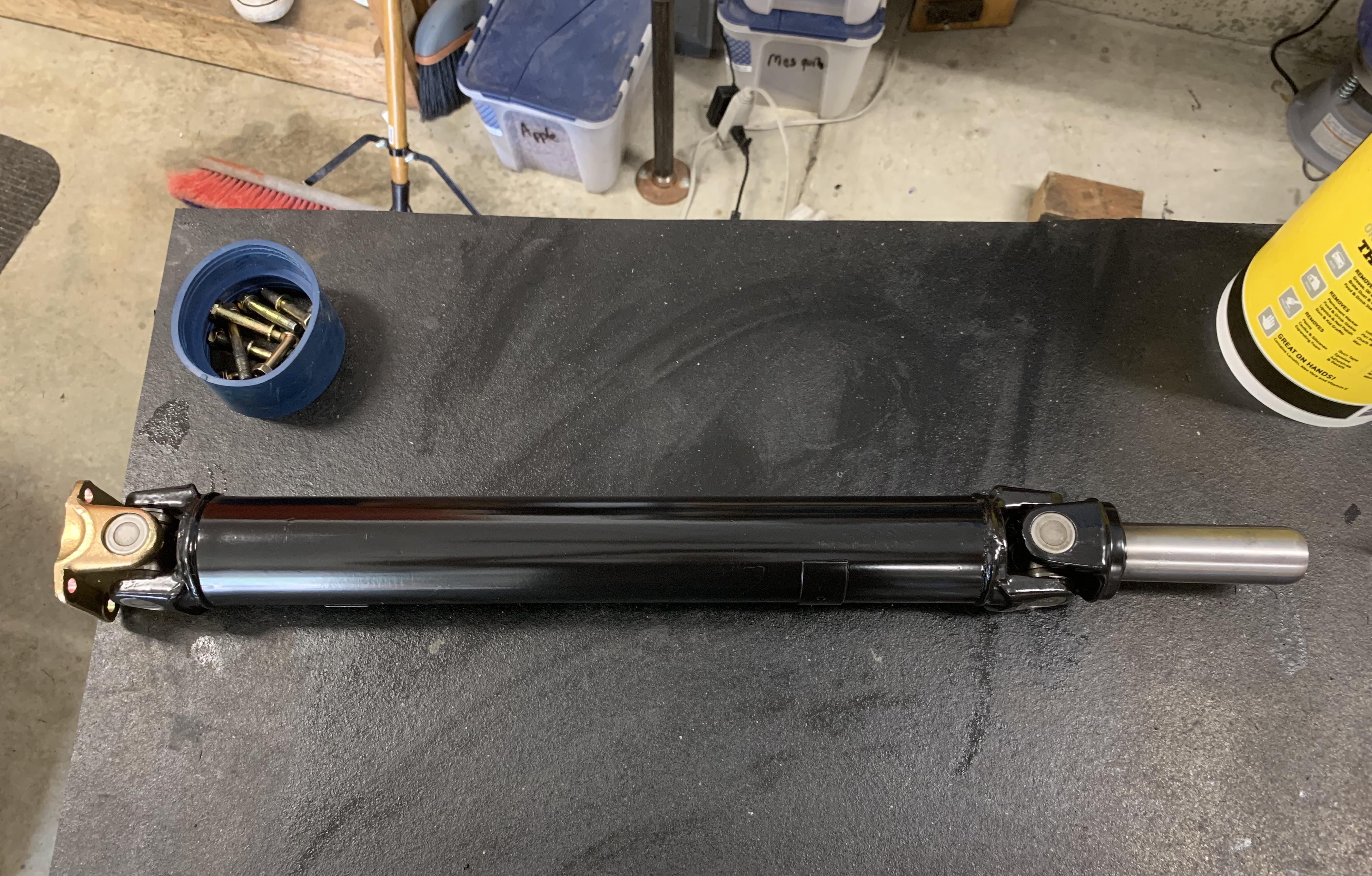

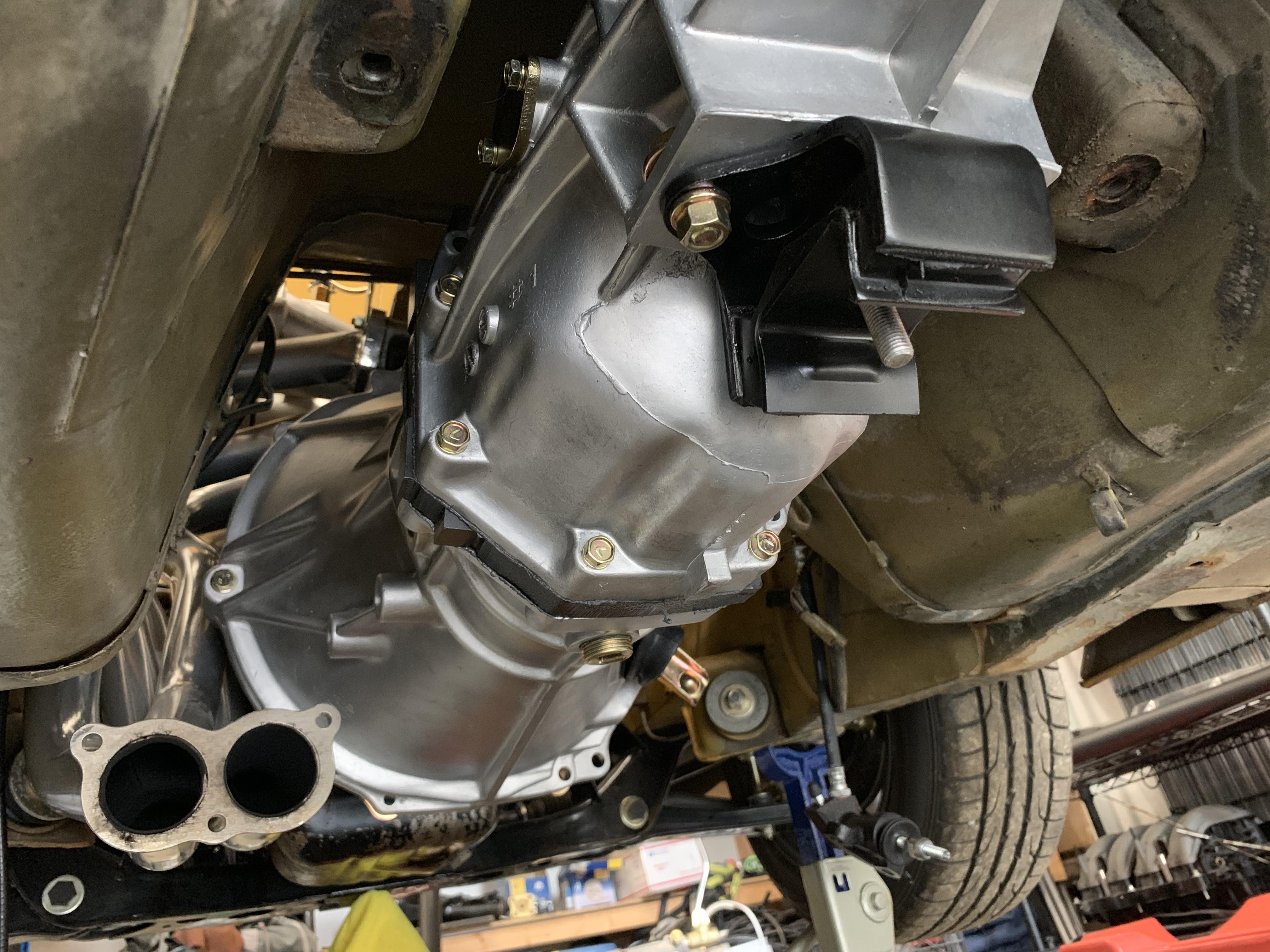

Ka is in. But I cut down a driveshaft had it balanced and powdercoated. I just used some measurements from posts but they are super off from my z. I really want a 4 post lift. Working under a car on jack stands sucks

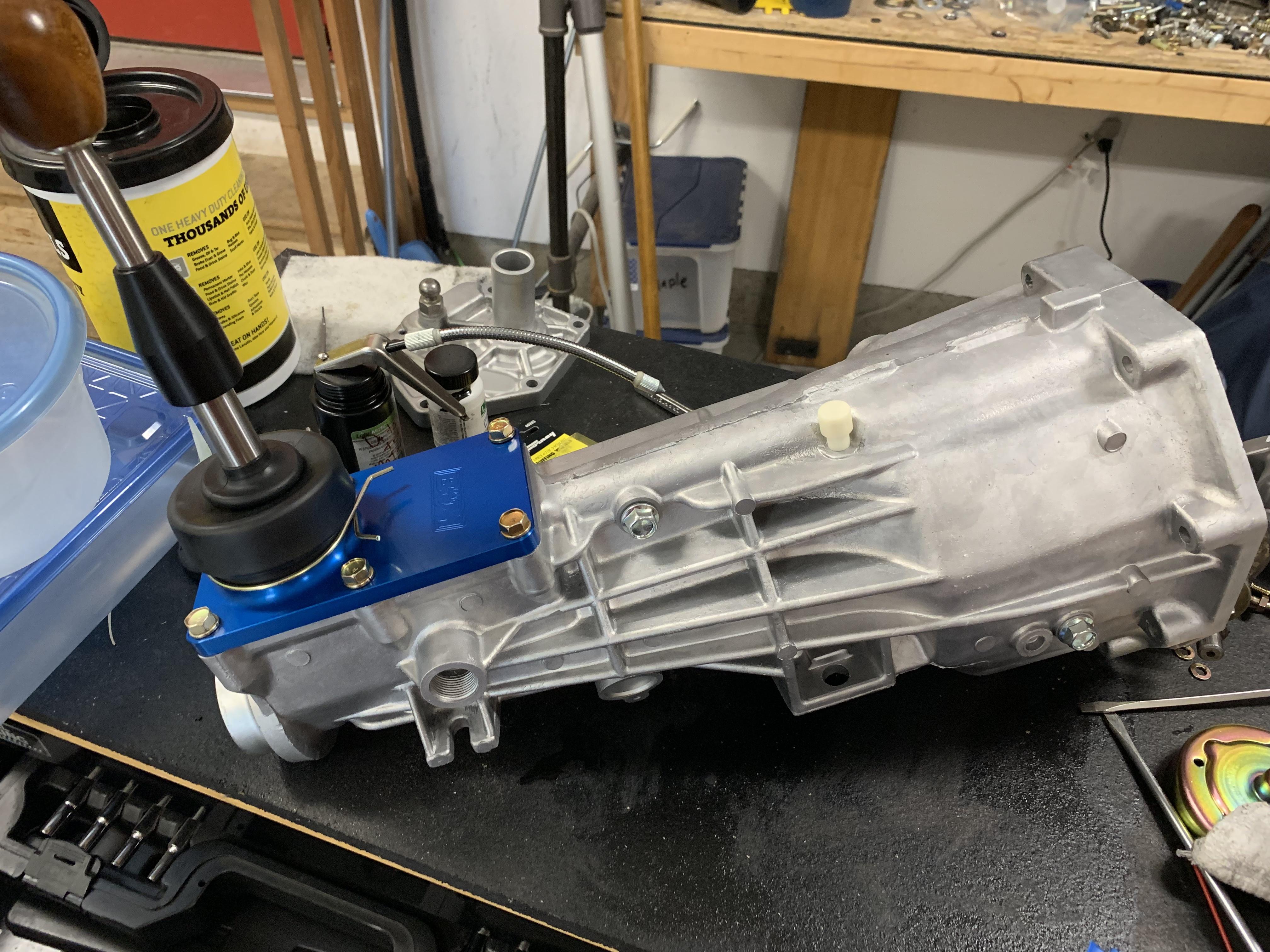

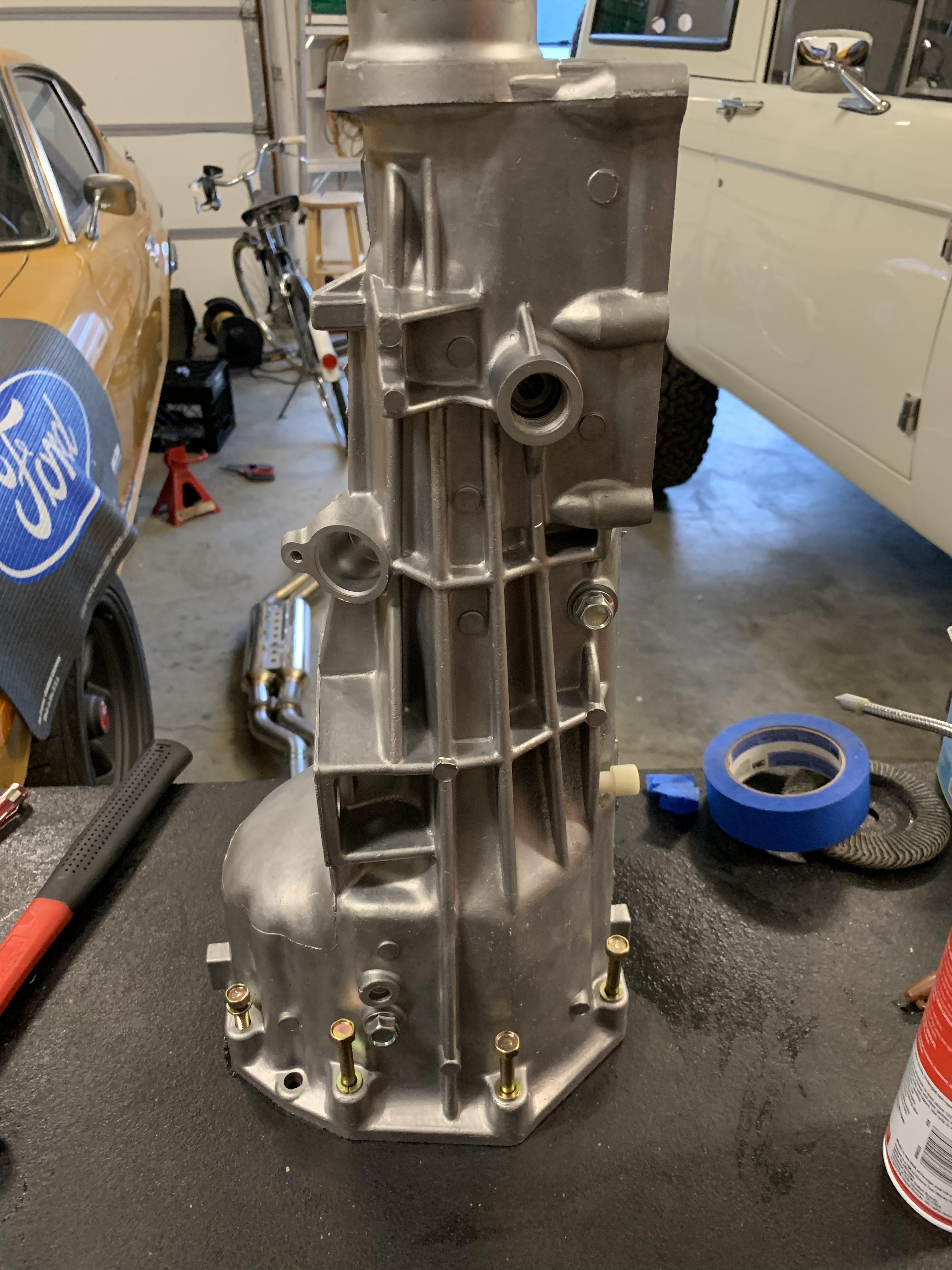

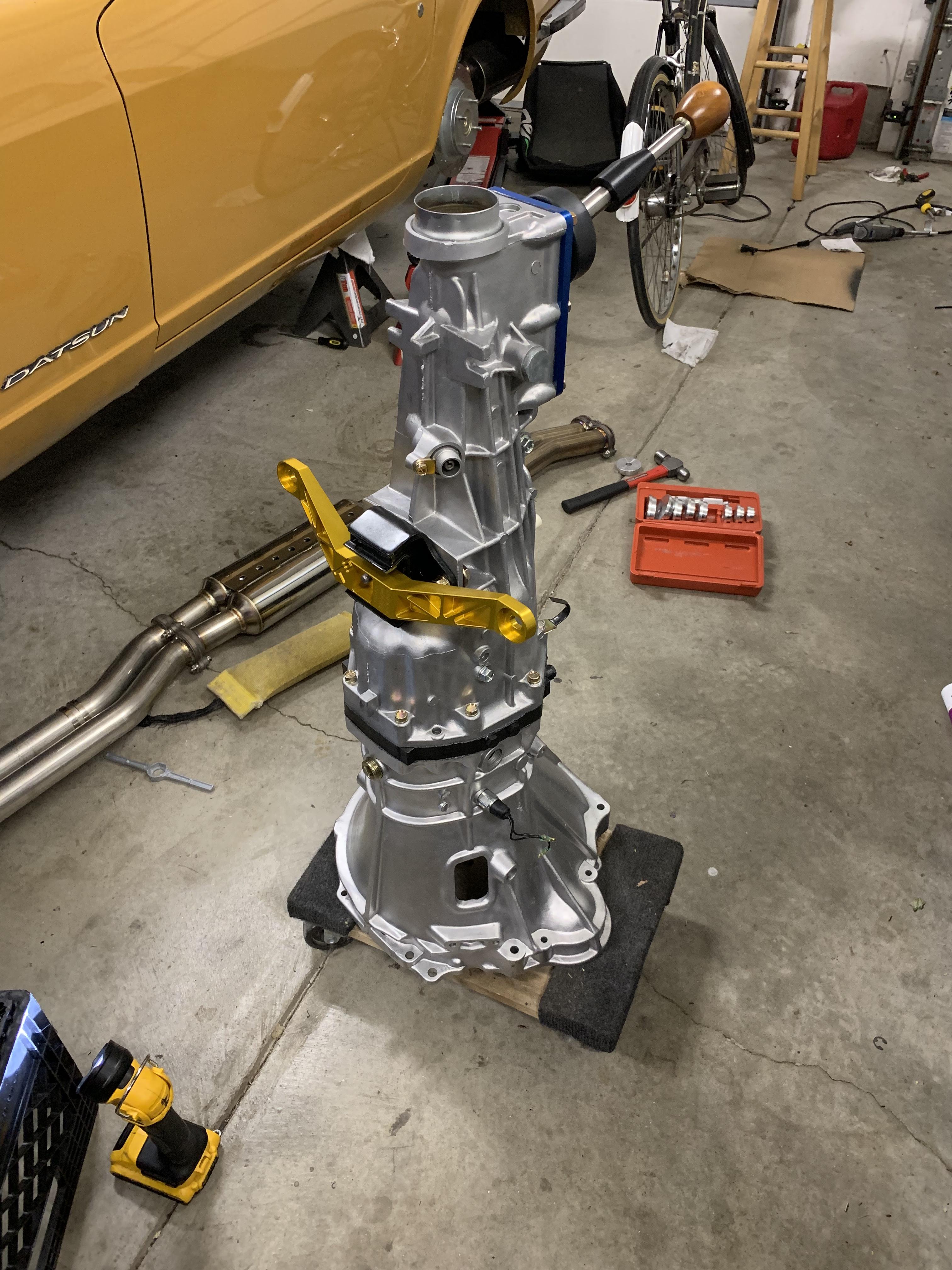

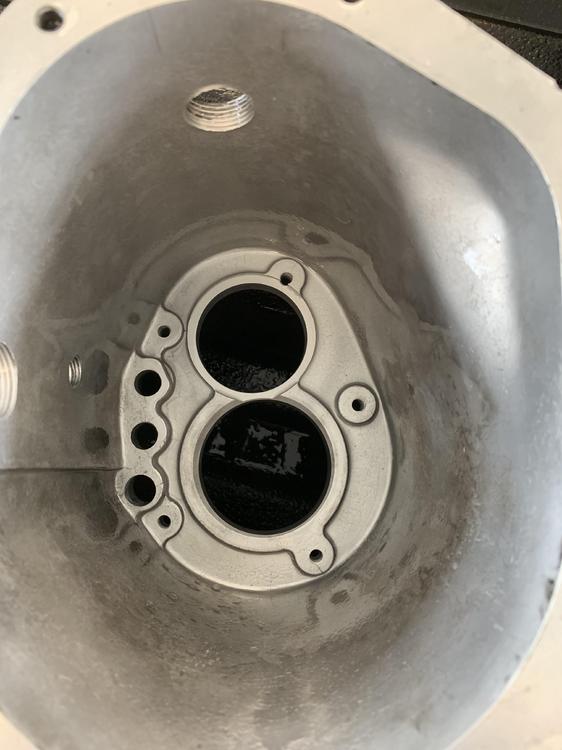

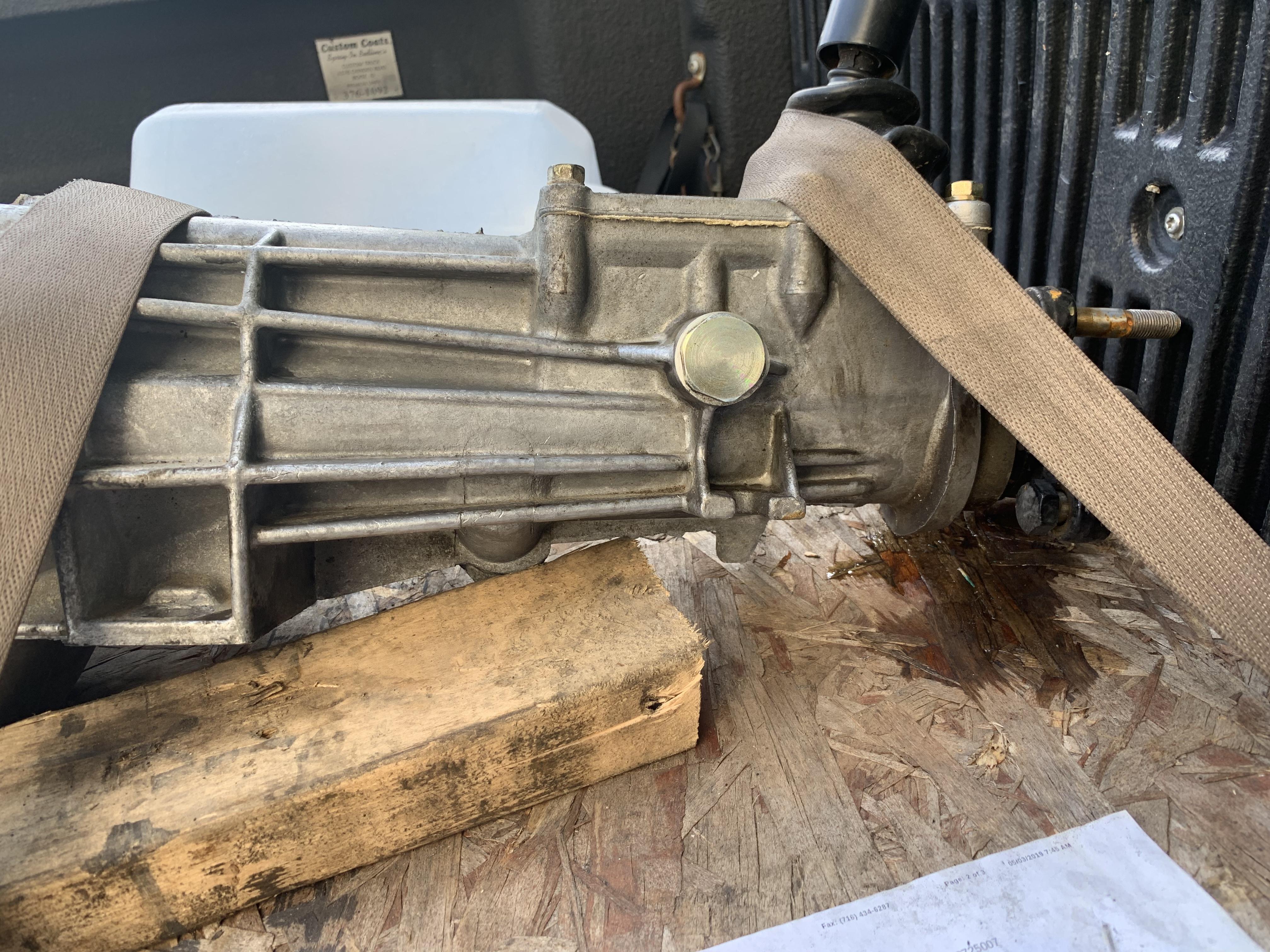

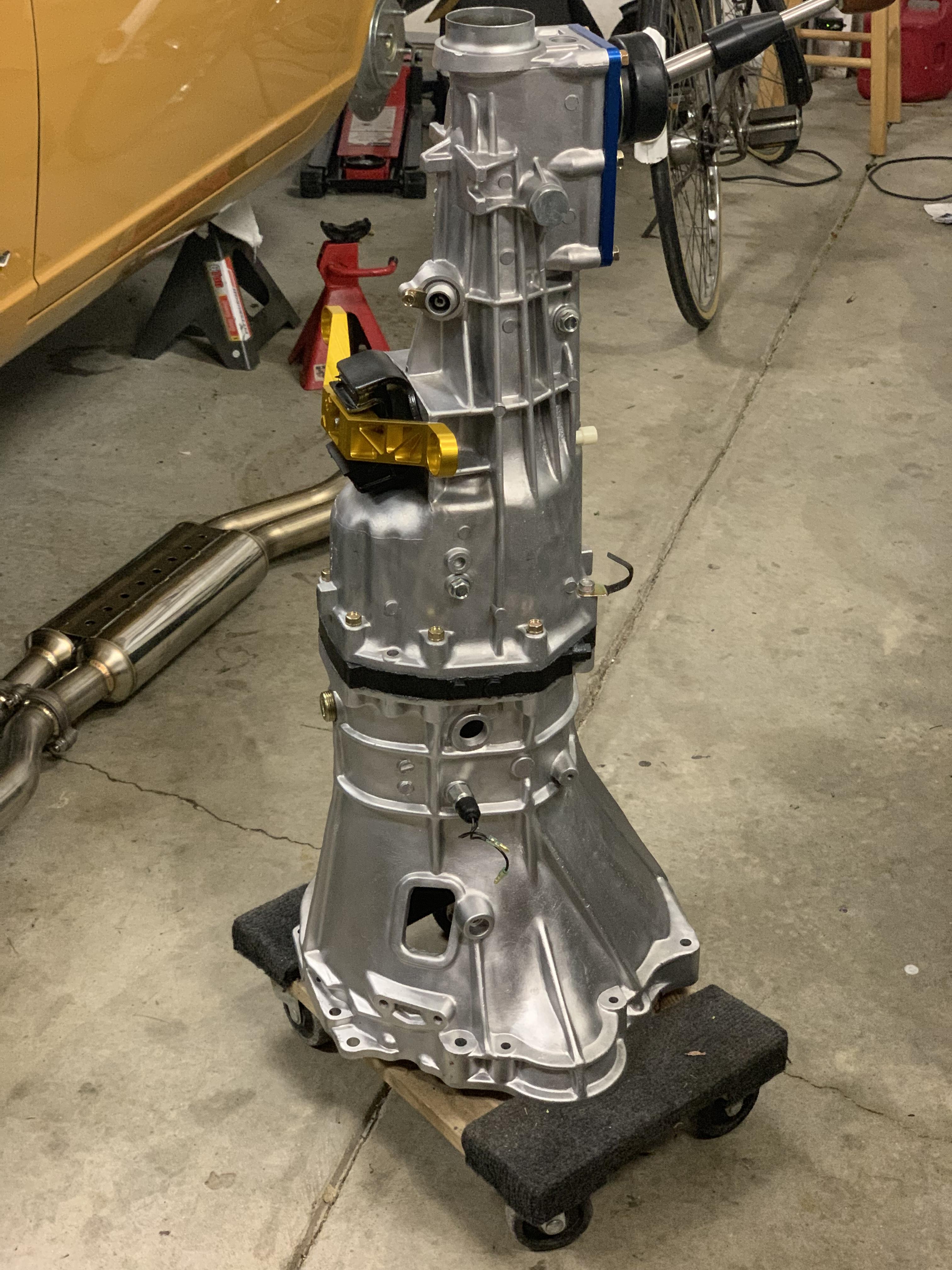

Finally got the ka trans. This is a low mileage (500) miles trans. Been sitting on the shelf since 1989. I found it on some parts website. Vapor and some zinc and it’s looking amazing. Bell housing mods are being done Emerish racing.

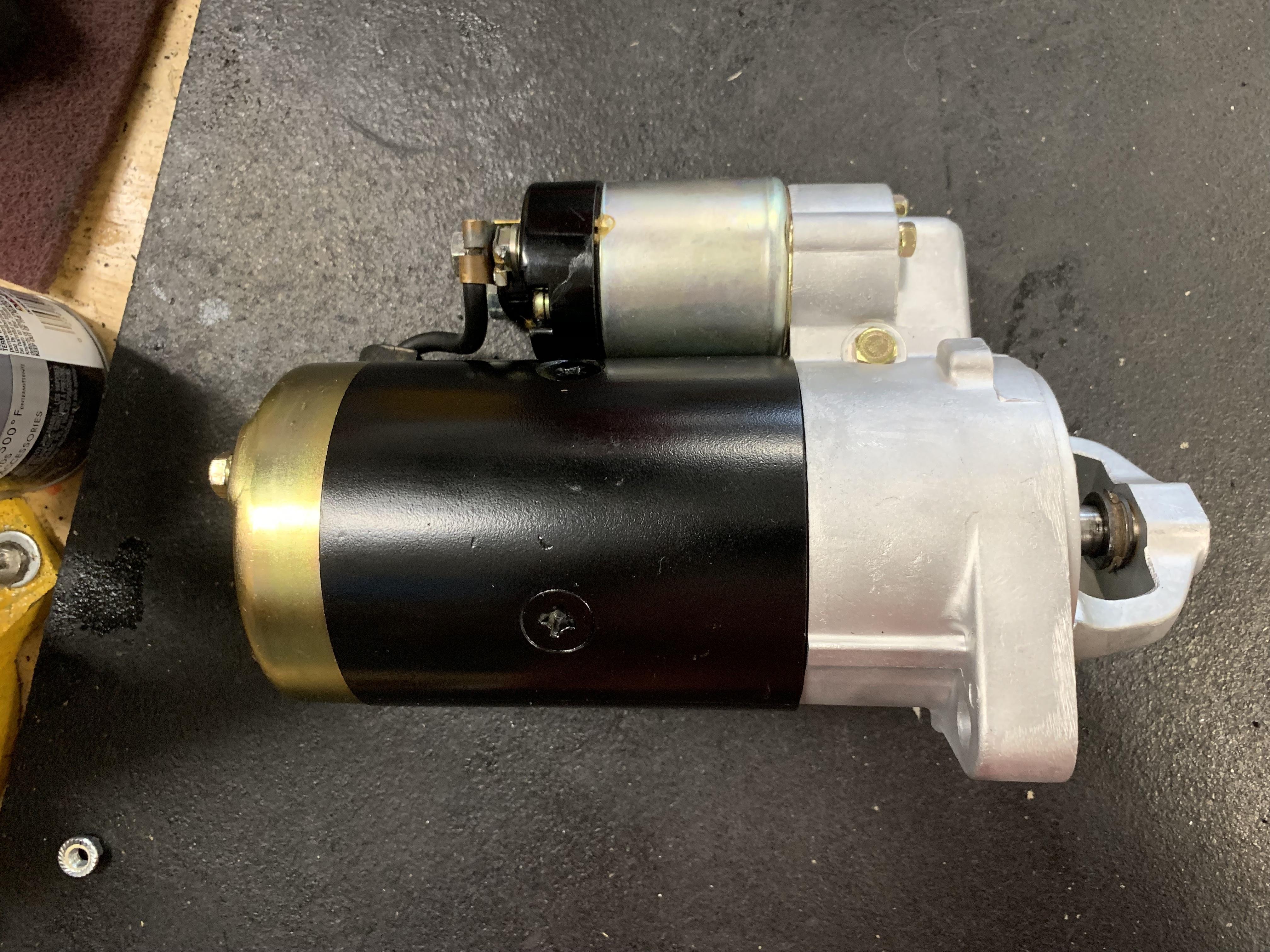

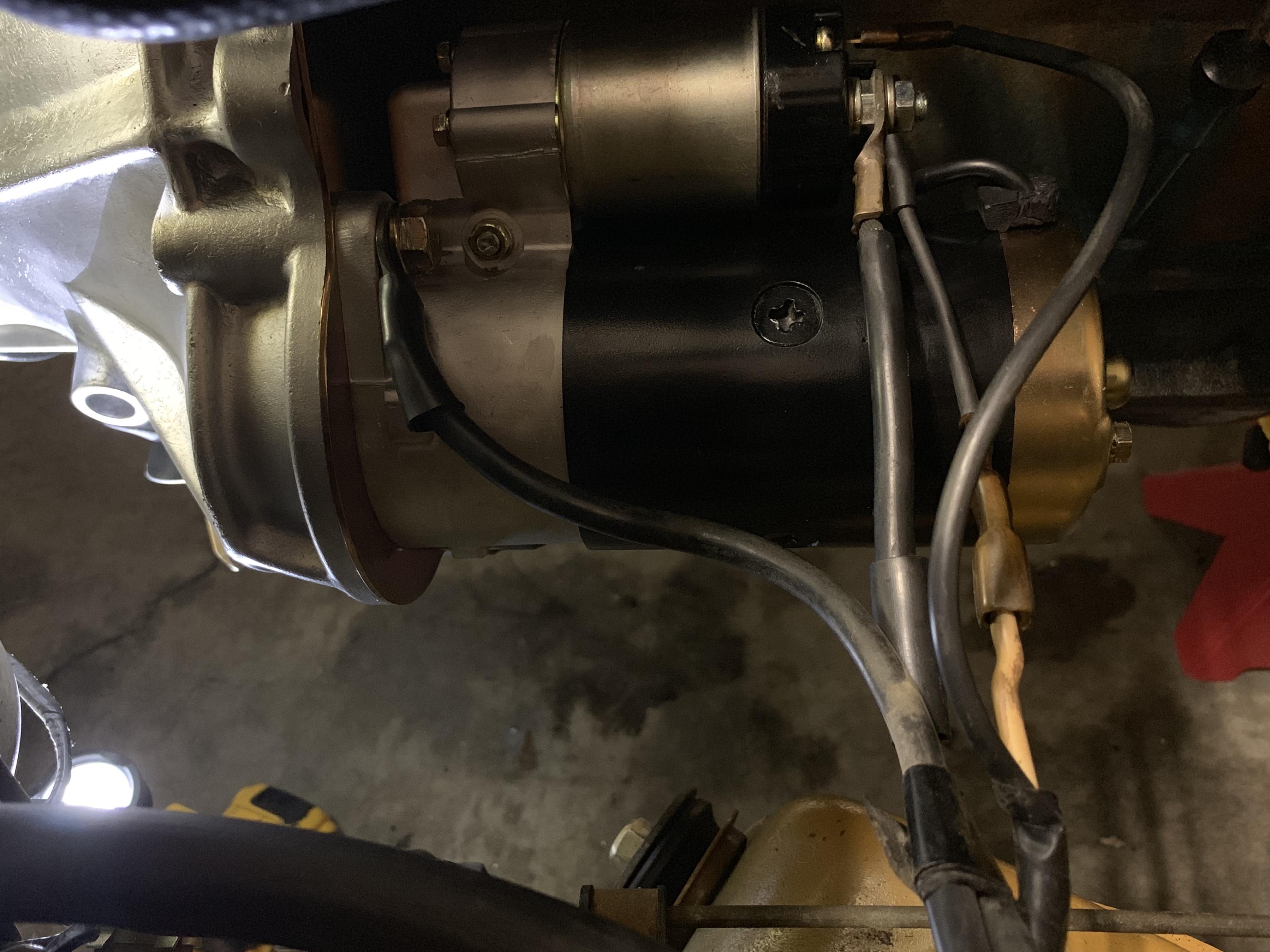

I got the starter put back together. Hopefully it works! Sure looks nicer.

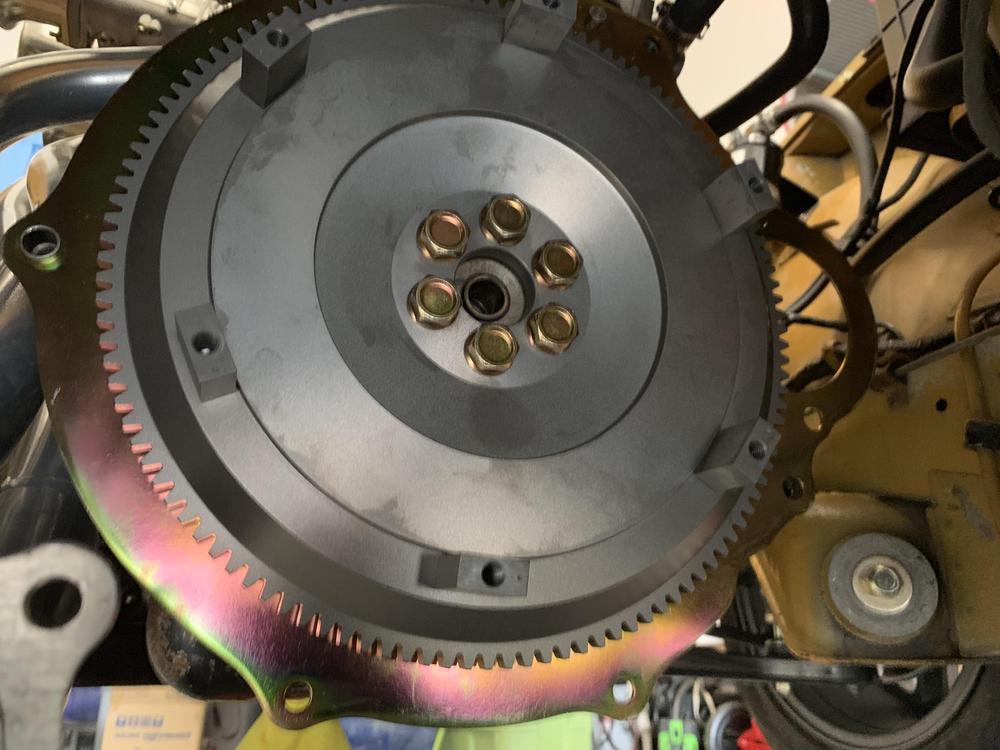

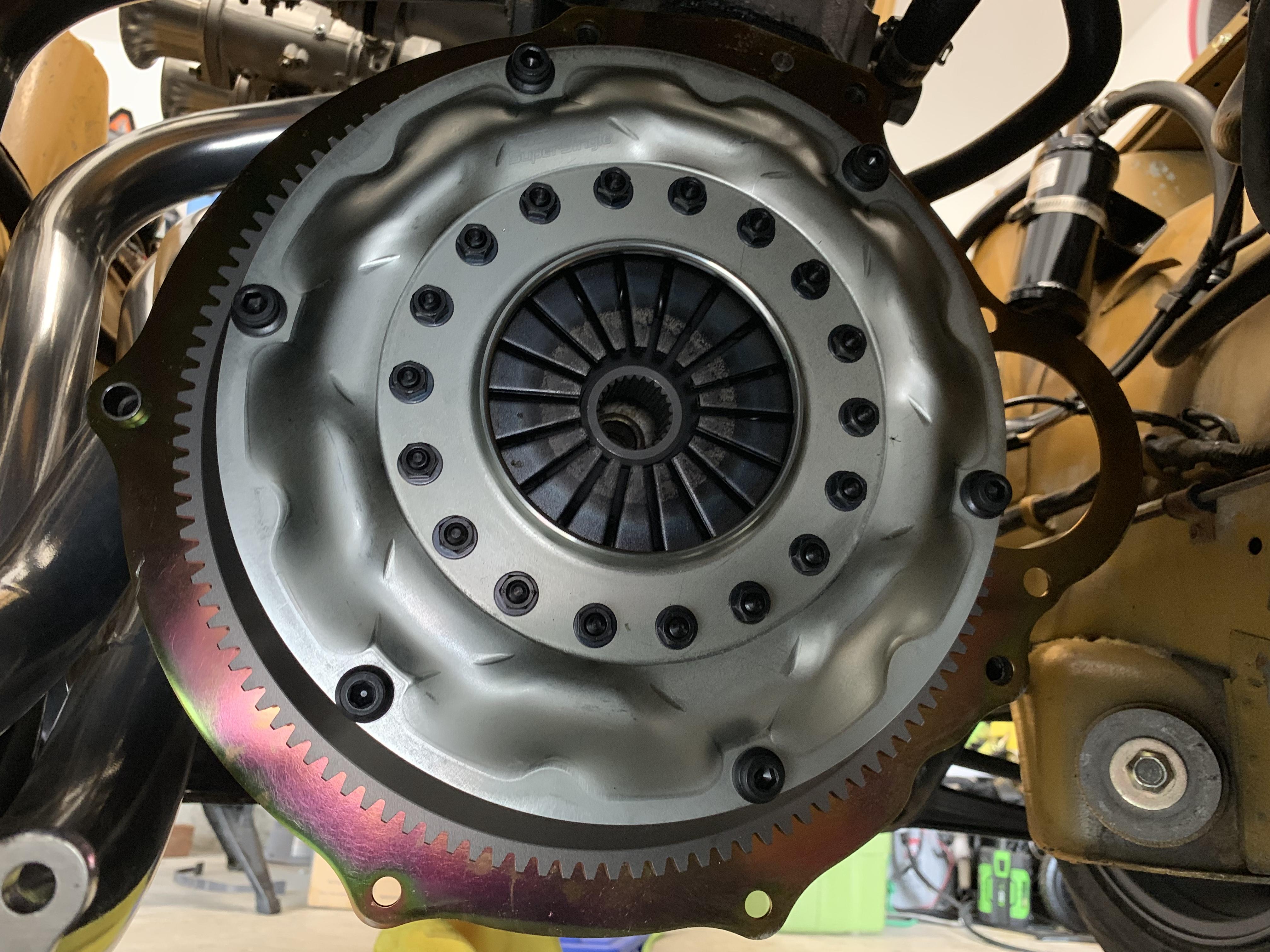

Osgiken clutch is in. Big thanks to Zgarage for the kit. Install was a breeze.

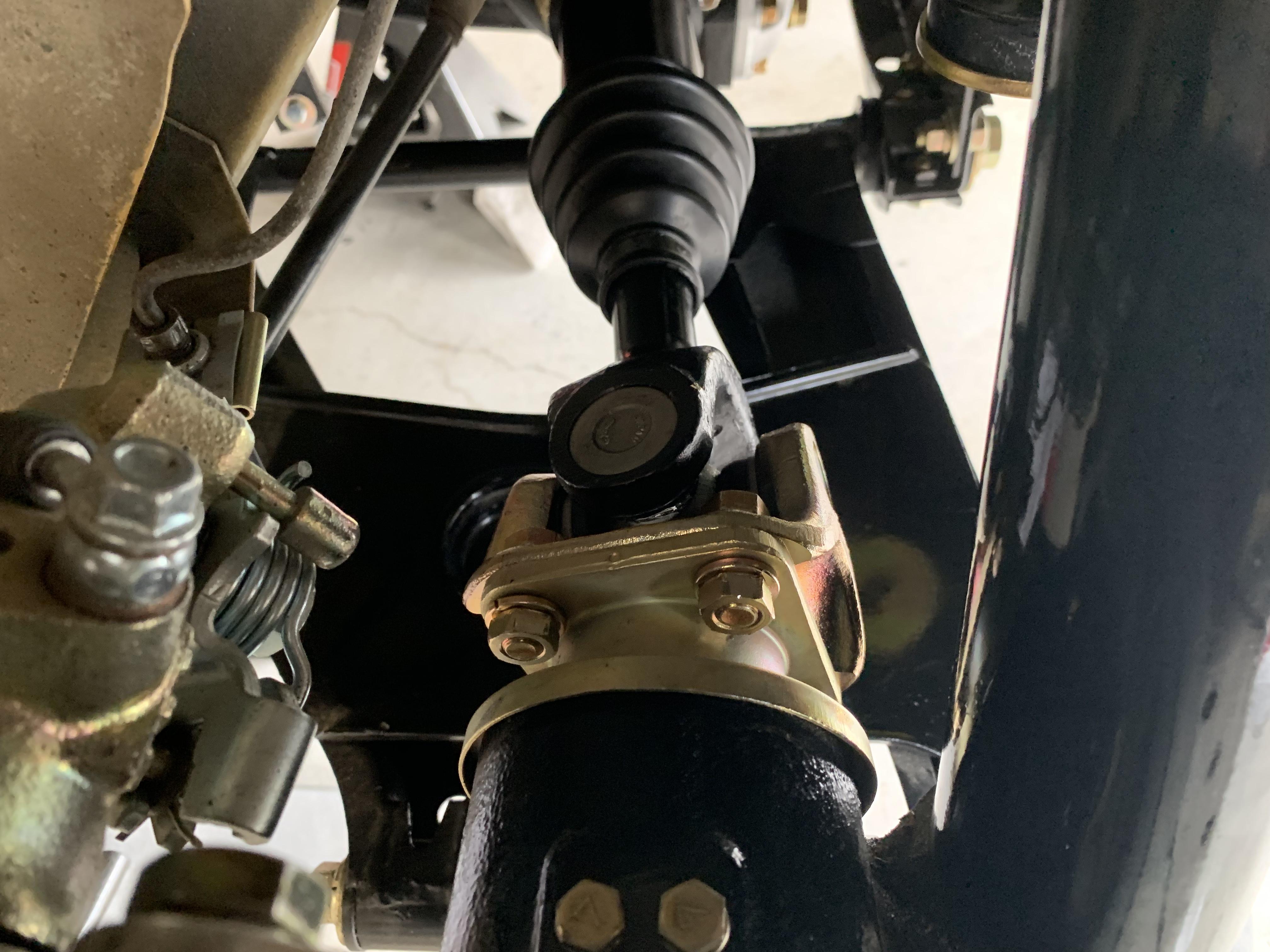

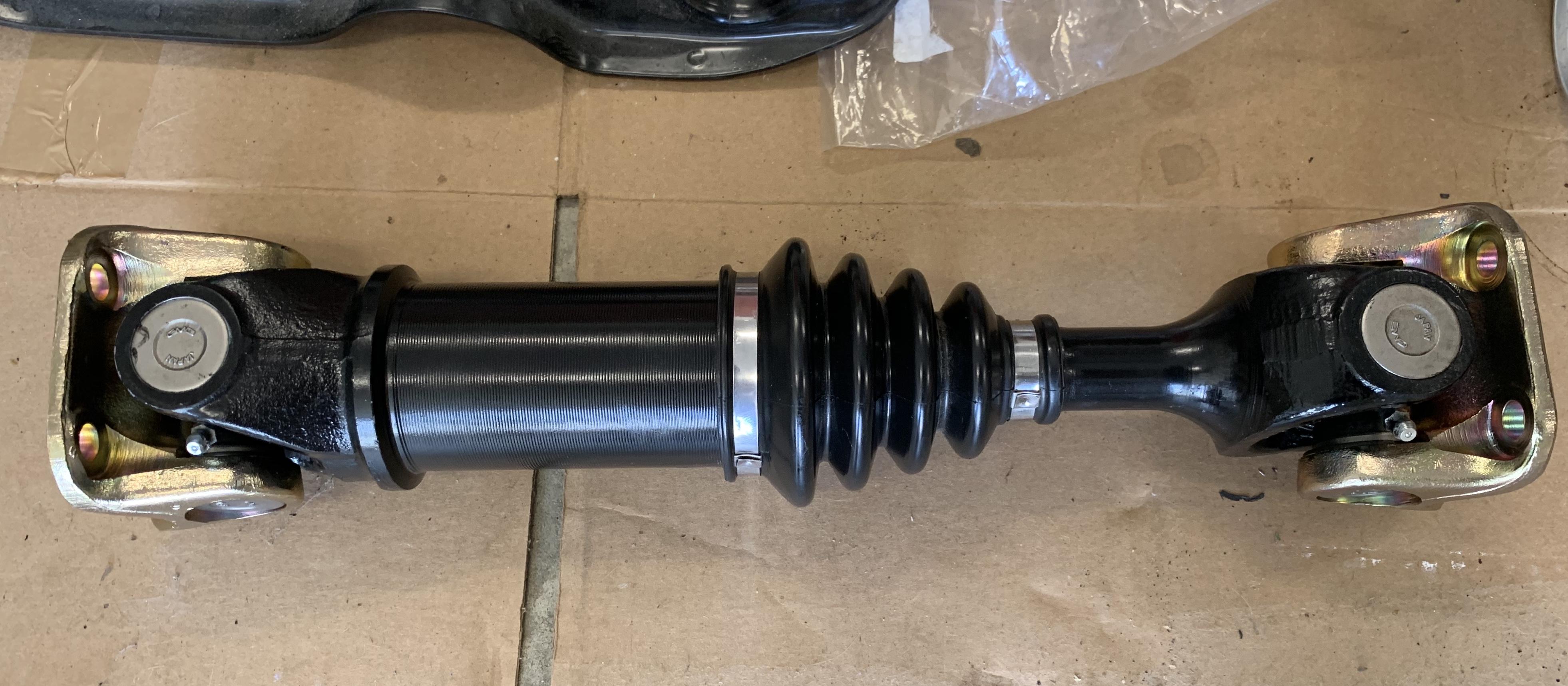

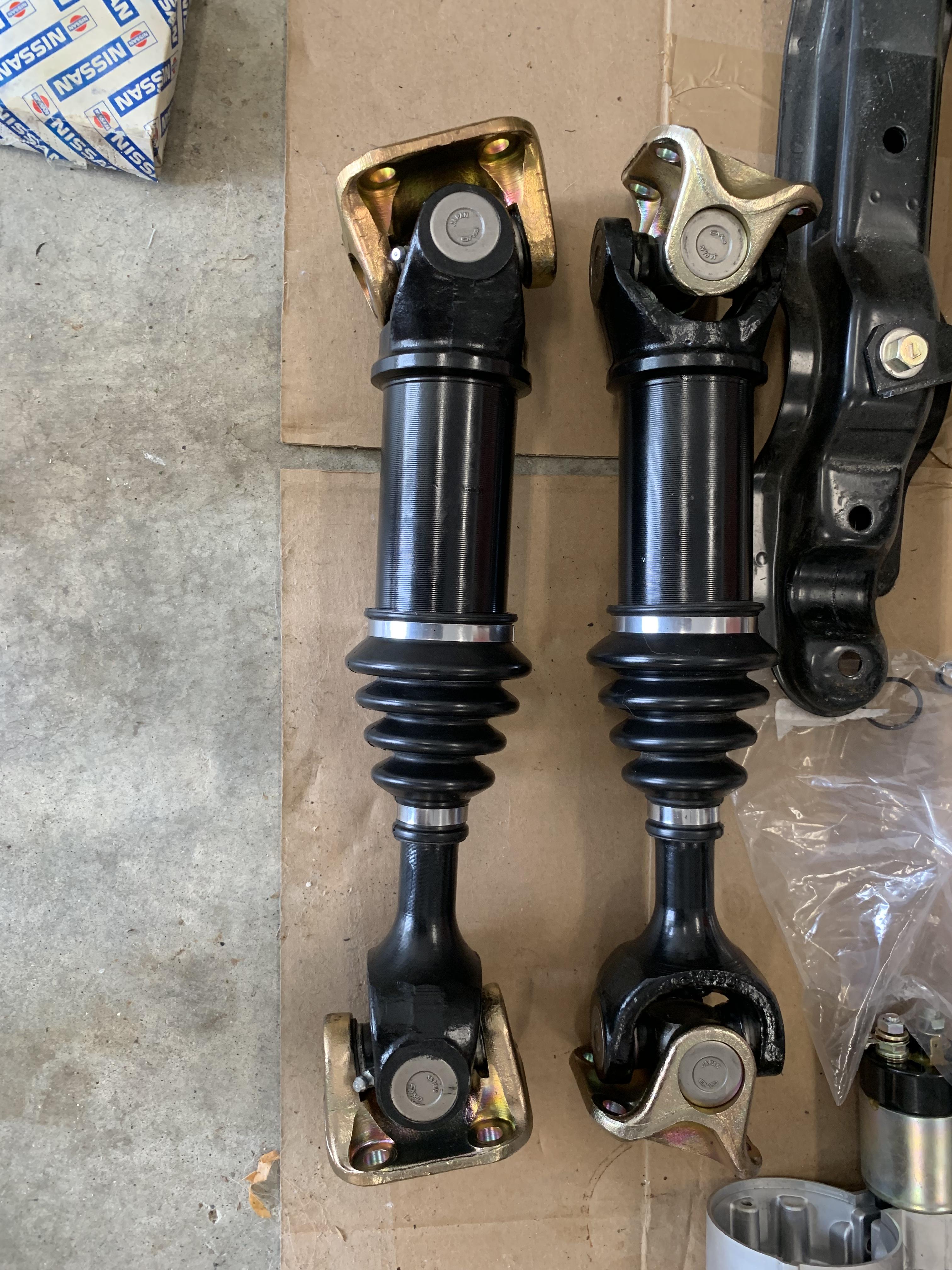

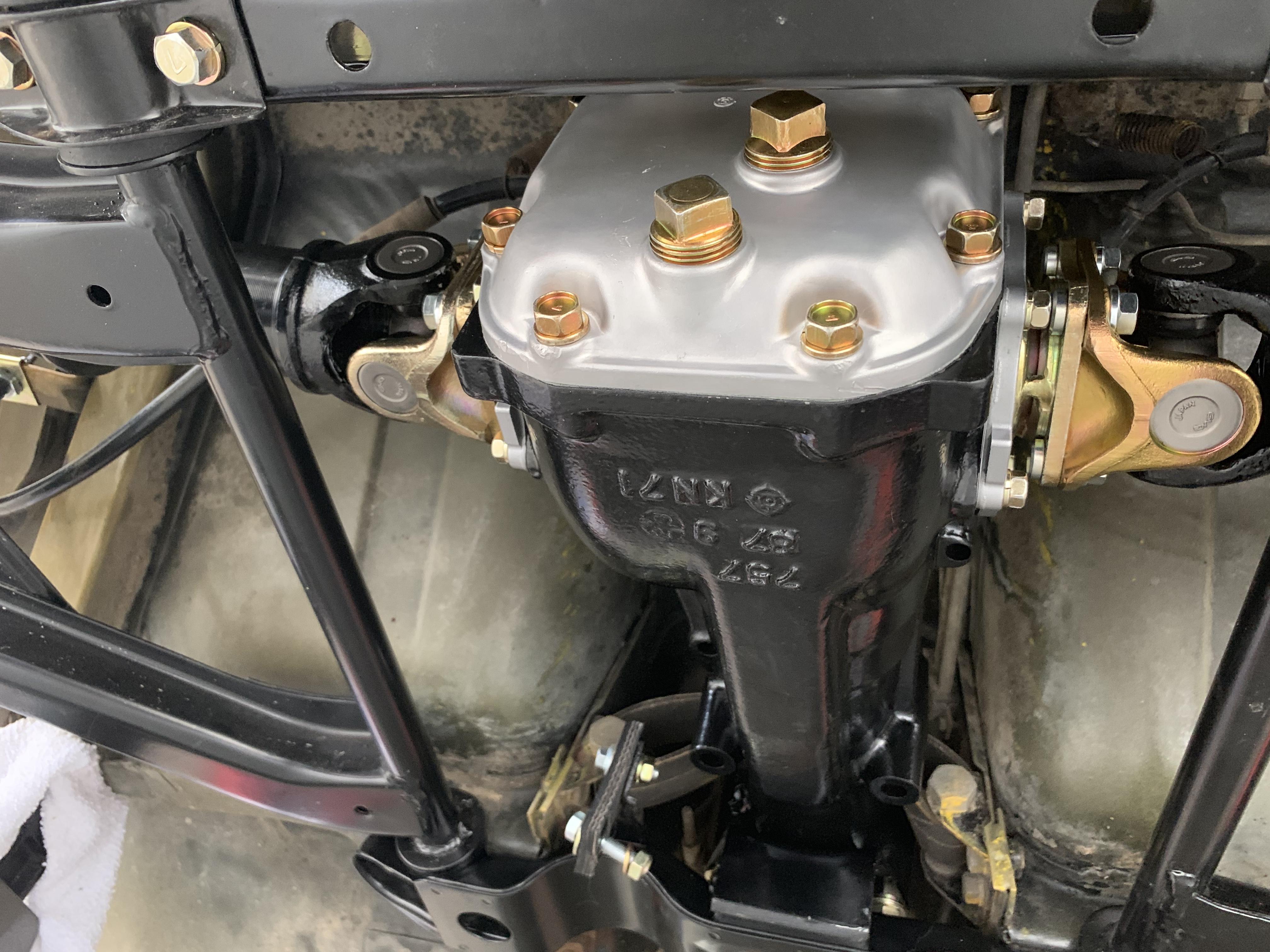

She is in. Gosh I hope it works nicely and I didn’t screw up! I really like how the half shafts hades turned out.

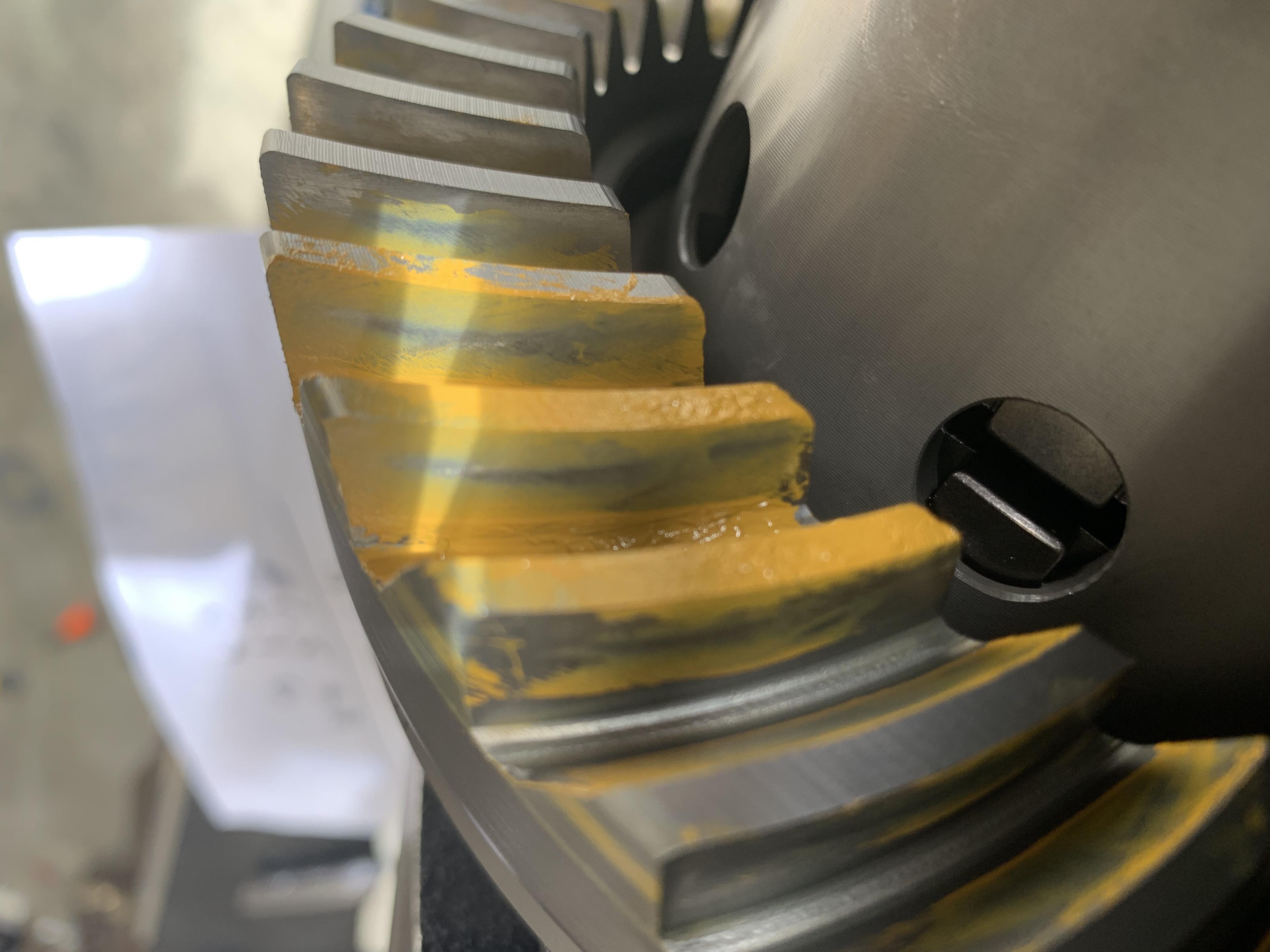

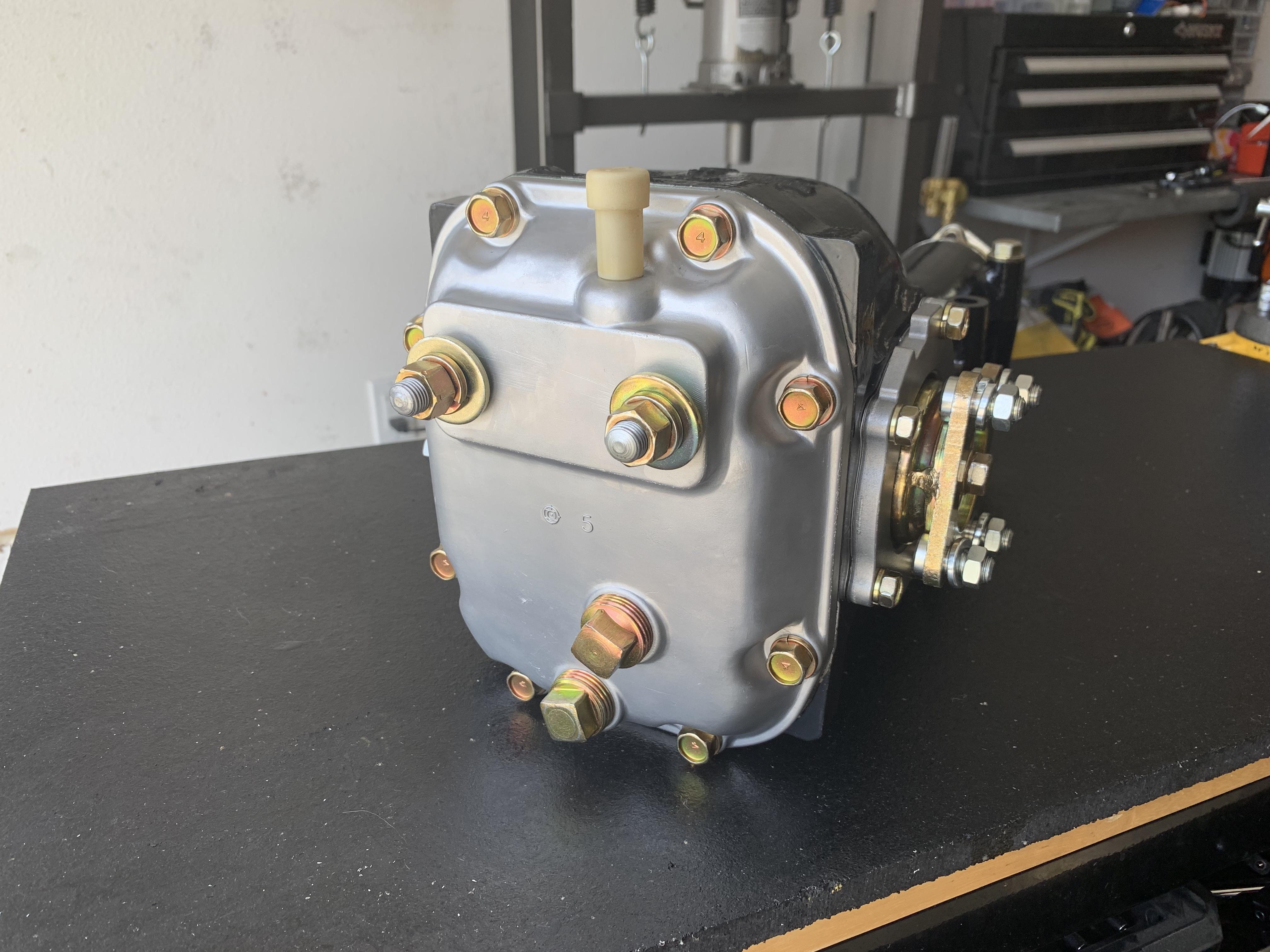

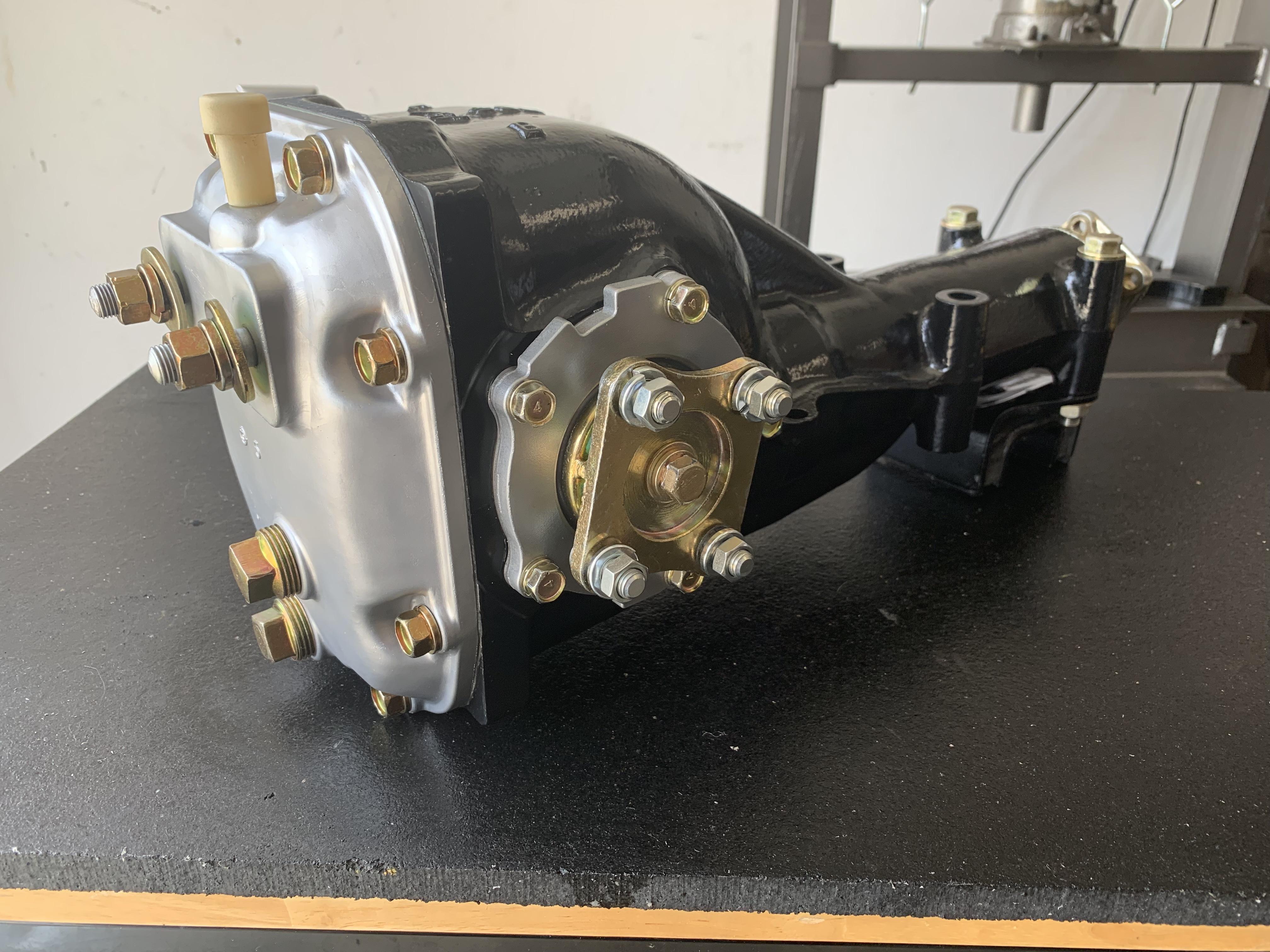

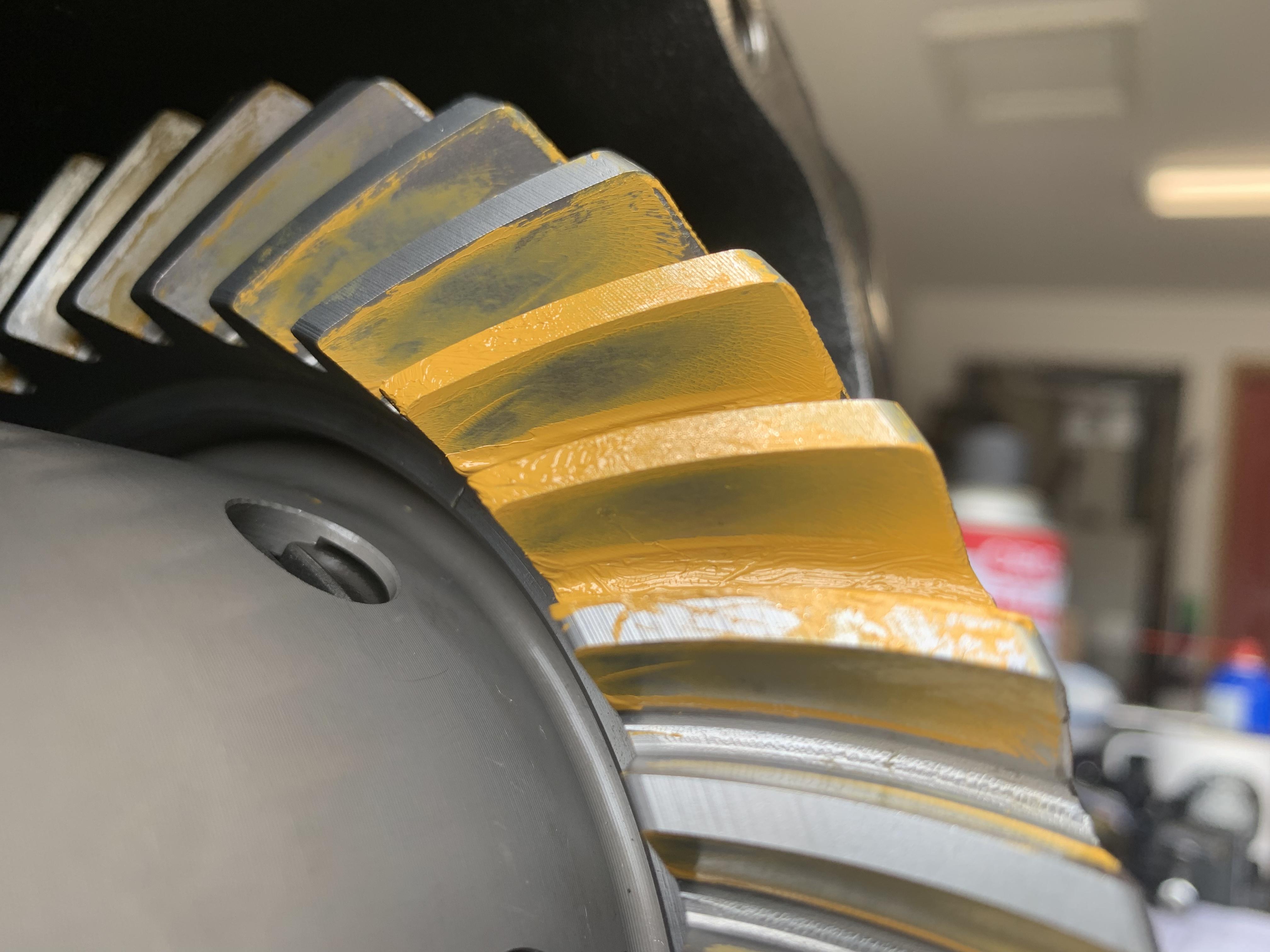

Well shimming the r-180, backlash, pre load and wipe pattern took most of a couple days after work and most of a Saturday morning. I think I took it apart 20+ times. Finally happy with the wipe pattern. Luckily I didn’t have to change the pinion shim. Edit: I think in a perfect world I would have had a special tool to set the pinion nut at the factory 125-150ftlb. Then used different shims to get the bearing pre load perfect. But I had no way, so a couple of hits with the impact is what I used to set pre load, I found that info on here and a few youtube videos. It's not precise at all, just hopeful the factory had it correct enough. A bunch of site posts and a few guru told me to just reuse the pinion shim and move on. Everyone basically told me backlash is the most important. Ended up with 5 thousandths for backlash give or take and then ring side backlash shim if .05 and other side of .07. Total inch pounds is around 8-10 on the pinion. No carrier I had around 3 inch pounds for the pinion. This is worth paying someone to do. Just FYI. I had fun. But super frustrating.

I wanted to send it back, since it was so blue/ purple, I decided to just live with it.
