26th-Z

Jerry, The honest truth about hand throttles is that very, very few cars ever made it into the hands of consumers equipped from Japan with the hand throttle. Most, if not all of the hand throttles we see were added at a later date. My cars have hand throttles but they are not original. What was original was the dual lever housing with the lever and cable removed. None-the-less, it's a great feature.

I know we are talking about HS30s and I know that this subject is discussed somewhere in the archives. Just thought I would share some specific HLS30 info again about the clear glass, vertical de-mister glass, and horizontal de-mister glass. Technical Bulletin # TS72-29, published 11 April 1972, states that HLS30-01455 was the last car produced with clear glass. Vertical de-mister lined glass was installed up to HLS30-062001. The May 1970 Service Bulletin, Vol. 125, discusses the vertical de-mister on page 45.

Why don't you just replace your JVC? $129 at Crutchfield JVC KW-R925BTS. It took me longer to type this response than to find the unit with Google.

Hey! Glad to see your comment, Mike. I was thinking of responding as well about scraping the glass. The glass is etched. You won't get the lines out. I tried. Both my cars are clear glass type and I bought a brand new piece many years ago for the same reason.

My comment was based on my surprise and scheming mind. The Sage HLS30-00222 is a vintage Z, one of around 37. That's why it was so expensive and I saw the BAT auction of the blue 1970. I'm surprised to hear as well as pleased - somewhat. Thanks for explaining.

I saw a video of Eiji translating for Matsuo san. Gut gemacht, Eiji!

Hmmm....six digits, huh? I would like to read that conversation.

Kats, The original throttle shaft bearing design was doomed to wear from day one. And for that matter, all carburetors have a similar problem; the metal of the shaft and the carburetor body is 'soft' metal which will wear excessively with the constant use. I believe that they were designed that way to prevent binding. Throttle shafts machined from a harder alloy with a similar alloy bushing will work just as well as the bearing arrangement that ZTherapy provides. I have even seen throttle shafts plated to compensate for wear. In both cases, either design, I would recommend occasionally oiling the bushing / bearing with some penetrating oil. Your re-builds look fantastic. It is great to see such a delicious set of early carburetors. Engine jewelry!

Those are very nice, Kats. I do not see very many early carburetors like mine. Here are some solutions to make for etching the shiny aluminum. Use gloves and safety glasses. http://www.metallographic.com/Etchants/Aluminum etchants.htm Etchant Concentration / Mix Conditions Comments Kellers Etch Distilled water Nitric acid Hydrochloric acid Hydrofluoric acid 190 ml 5 ml 3 ml 2 ml 10-30 second immersion Use fresh For most aluminum and aluminum alloys Methanol Hydrochloric acid Nitric acid Hydrofluoric acid 25 ml 25 ml 25 ml 1 drop 10-60 seconds Pure aluminum, aluminum-magnesium, and aluminum-magnesium-silicon alloys Krolls Reagent Distilled water Nitric acid Hydrofluoric acid 92 ml 6 ml 2 ml 15 seconds Aluminum-copper alloys

If memory serves me right, 105 was listed on BAT about the same time as 187. 105 was in a field in Kentucky and was sold with another parts car.

Wow. I'm SO glad I bought mine when I did.

Ok, I remember when this conversation started as the claim of a unique competition frame member. I was afraid that "apparently" was going to mystically become reality ( I have had enough of mystic reality these days ) and I had to respond.

When did this become 'apparently"? Any photographs or parts catalog drawings to support this "apparently"? I think the tabs are for frame alignment purposes but "apparently" I can't support my opinion either!

No better way to troll a crowd than to let your ignorance hang out! What few Japanese friends I have on Facebook are celebrating. I would imagine he's a national hero for the moment.

Ohhh!! Those are great pictures, Alan!

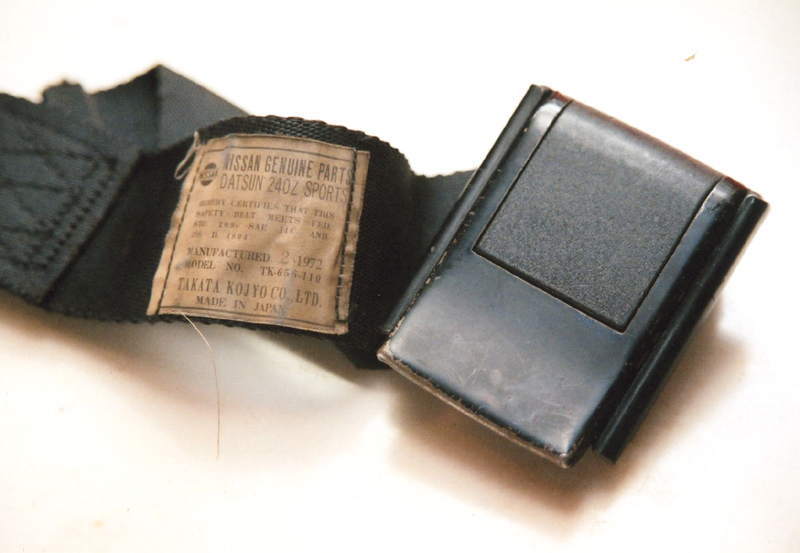

I had fun making those tags years ago, Kats! Thanks for taking this one on, Ziggy. Here's a picture from my collection - just to mess with everyone.

Yes - confirm six labels required per car and yes I think a 12/70 date stamp is appropriate for your car, Dan.

I thought silk material when I did my reproduction effort many years ago. But it isn't silk. The thread size is much thicker, the weave is much more course, but the fiber size IS very similar to silk. Also want to tip my hat to Snake Oyl seat belt restoration. Yea expensive but very good quality and easy to work with.

It's rare that I enjoy a rarely disputed discussion of rarity. I didn't even know that there is an ABS valve cover. What car did that come on? So, are those scratches in the logo? $2,000 for a scratched (irreparable) valve cover? Or are those scratches even rarer that the rare rarity?

Then perhaps they are not as rare as everyone seems to think?

PM sent

Thanks for the voice of confidence Zed Head! Of course, I don't know a damned thing and you should overlook whatever I post. I gave you the source, publishing date and page number! What more do you want? Perhaps all you want to do is argue? BTW, thank you again, Alan, for my copy of "Car Graphic".

That image comes from the February 1970 issue of "Car Graphic" magazine, a Japanese publication, page 58 of an extensive article on the design and prototype development of the S30. We have seen many images scanned from that article. The picture is attributed to the development stage of July / August, 1969 (prototype P6 and P7).

Hey, congratulations! Look forward to talking with you about the car.

From my 1972 Fairlady Z parts catalog, models including S30, HS30, and PS30: 76807-E4100 Ornament rear quarter RH 76808-E4100 Ornament rear quarter LH The E4100 indicates the initial or "earliest" application however I don't see why there would be a distinction between left and right hand installation if it was not vented? A later part number E8200 is listed with a specification of "from chassis # S30-04551 and PS30-00401".
