Yeah looks like we screwed up with the pass-through capacitor and thought the box was grounded. It did seem strange for it to be like that when we were building them. Our circuit has reverse polarity protection luckily, but we will send around an addendum. Good pickup on that thanks.

Yeah the red wire going to the stud is an earth, just like the green and red on the main harness outside the box. The black wire inside the box is positive and yellow and white are the 'signal' wires. Gav your units that are now in the post come with wiring guides and pin-outs that explain what everything does to wire our one up to the stock plug.

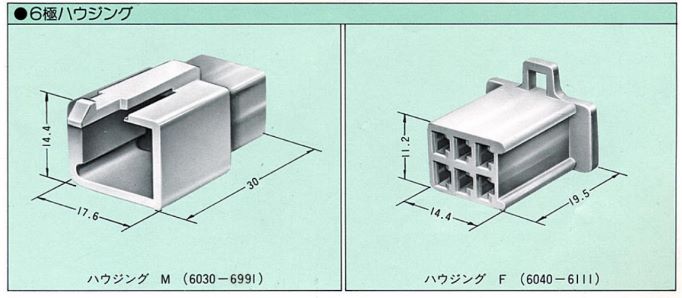

I think you have misunderstood what Gav was talking about. He wants a solution with an OEM plug so he can plug it on any clock, with the old or new oscillator. As you've stated you've used a tail light plug and mine comes with a plug or I have a link to source them for US based people as they are $3USD. Our circuit board comes with a wiring tail so you mount it inside the original box or one of your choosing and just put the plug on it that fits the original clock's loom or put it inside the clock if that is what you want. I figured most people would have the factory clock loom still and wouldn't want to open up their clocks.

Sorry i didnt see this message but looks like you've sorted it out yourselves anyway! Happy to sell you one if you are still keen though For anyone else looking at the thread my version of the circuit fits inside the clock and has reverse polarity protection too. Mine had some early stalling problems but by tweaking the output we managed to pretty much cure it. With the self rectifying nature of the signal we felt the pot wasn't necessary either with the Quartz driven signal. My friend Wayne was the electronics guy so i don't know enough to provide a better explanation than that.

Unfortunately I only have one, so that is the only one that has been tested on. But due to the design these are largely self rectifying and it should be fine. You can see we leave the programming pins on the board so if you need it adjusted we can tweak it or you can if you have a programmer but we dont feel it will be needed. Jaycar boxes are just generic box mounts: http://www.jaycar.co...tal-Boxes/c/231 I'm sure you could pick something up in the US and avoid the postage on it.

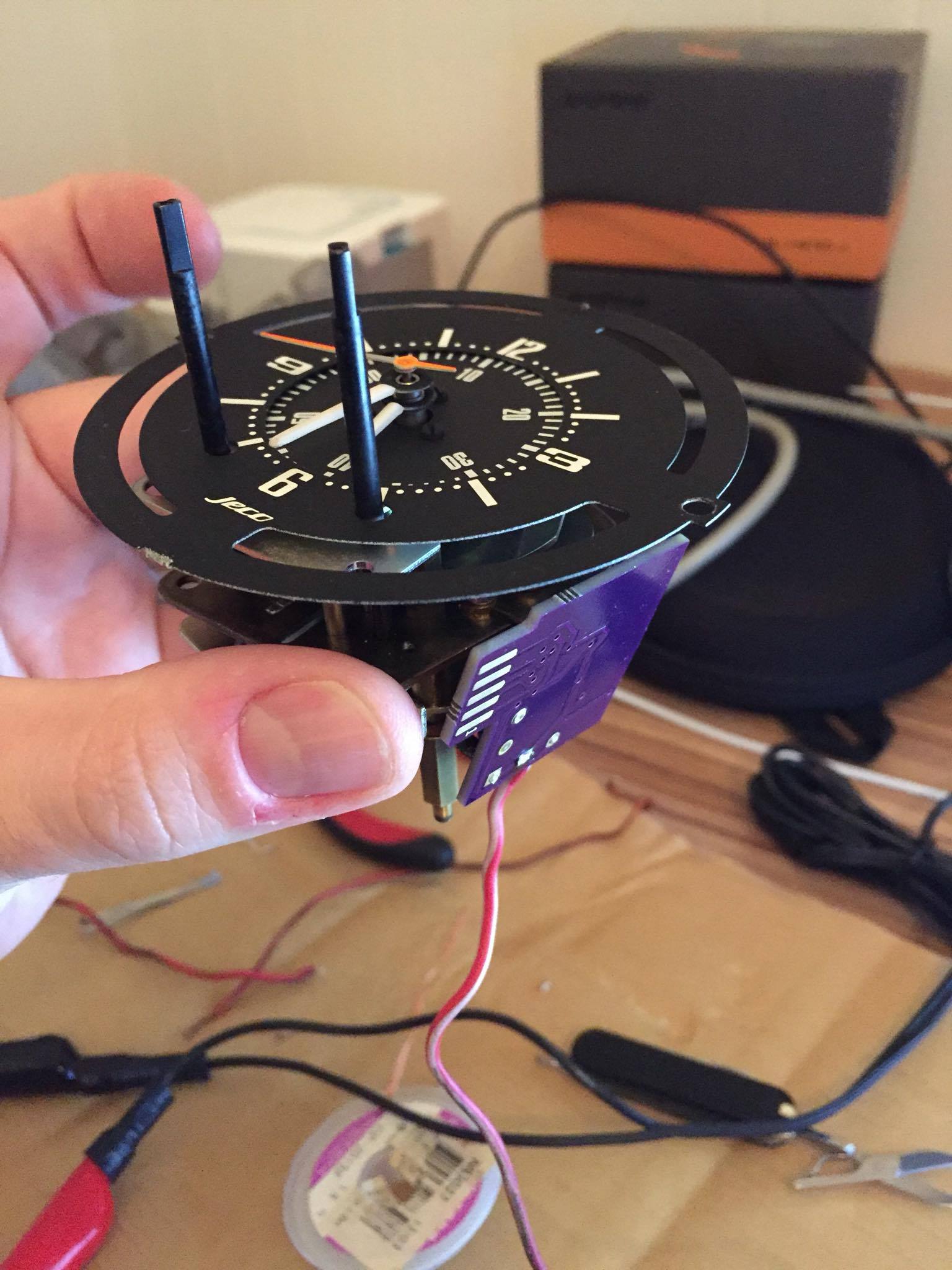

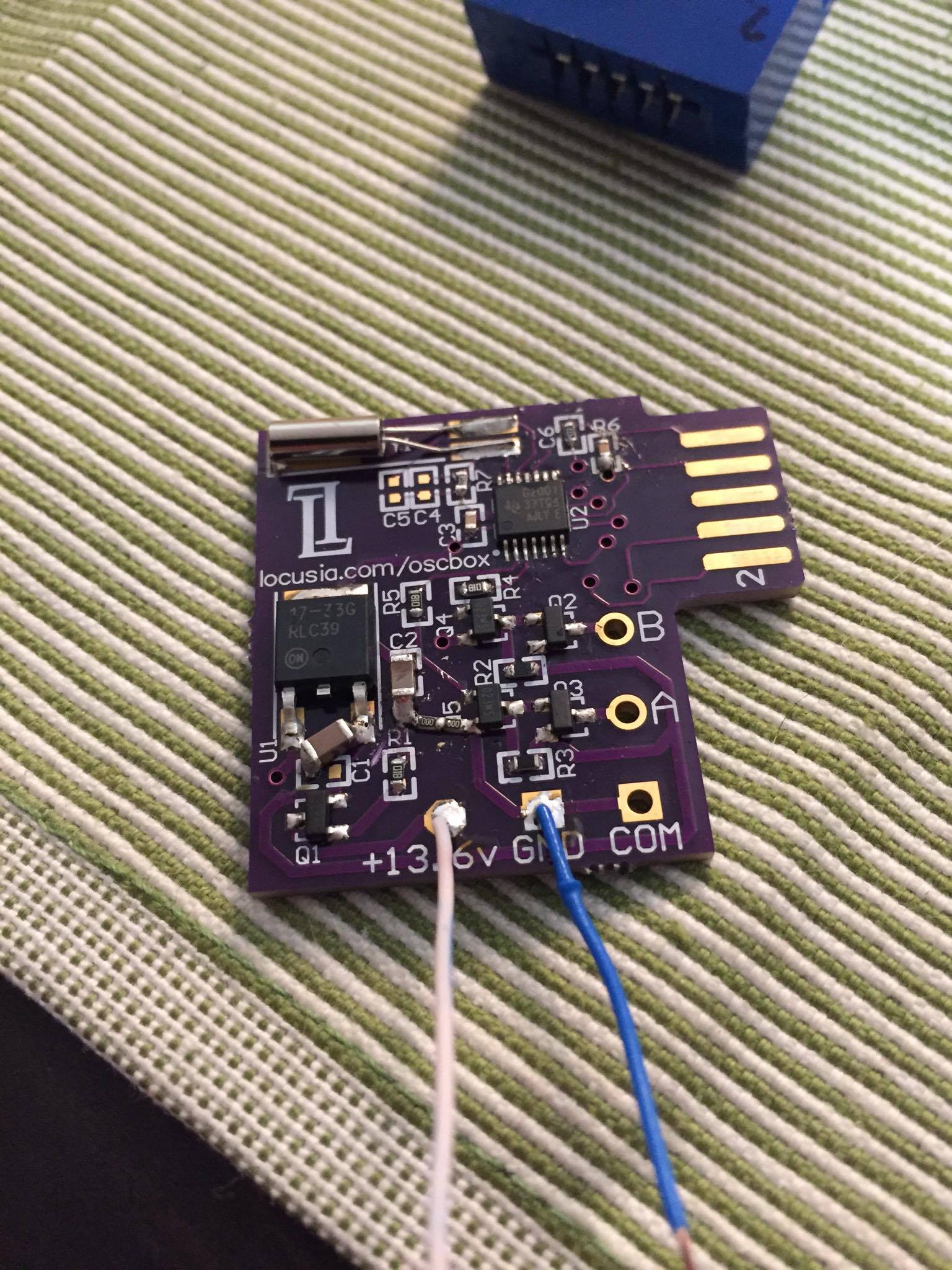

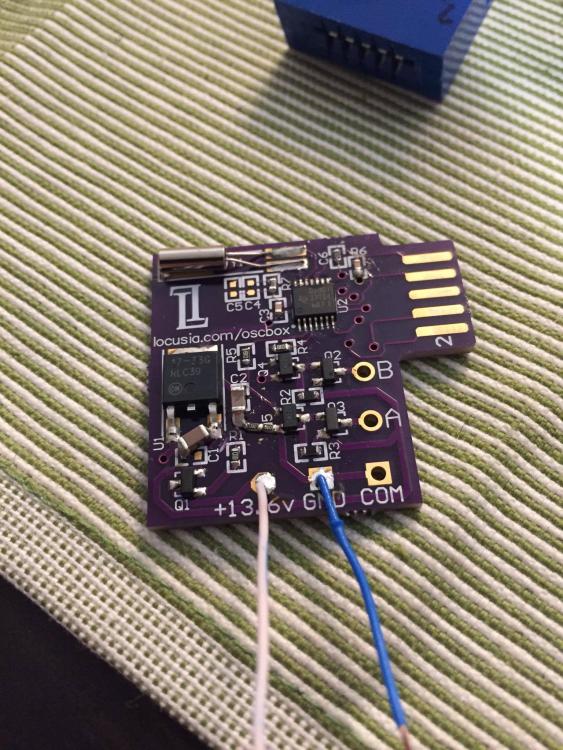

They said it couldn't be done! Here is the long awaited modern replacement to the oscillator box for the 240Z rally clock. The clock has exactly the same movement as the stock setup. This circuit completely replaces your old oscillator box and is driven by a super accurate microprocessor, instead of a tuning fork. We have a full working example after reverse engineering my own rally clock. It now keeps time more precisely than the factory unit and will be very reliable, with no moving components. We have also located a plug that will be compatible with the OEM harness for people wanting a plug in solution. You can see from the pictures that you can actually mount this PCB inside the clock it is so small. If you are interested, we are happy to supply just the circuit or an installed board depending on what you want. If you want a metal box from jaycar we can do that, or post us your original oscillator box and we can convert it. Let me know what you want! First run will be 11 units so get in quick (8 already sold)! PCB cost is $99AUD each and $6.50AUD for an OEM connector to plug into the factory harness (supplying at cost). This is 1/4 of the price of the actual oscillator box which may not work! AUD

Well, I can send you just that purple PCB and a link for the connector which is probably the most cost effective way since you are in the US. You can put it in your own box or stick it in the clock as i did. You just need to solder a few wires, its very easy and comes with instructions. If that is a bit tough, we can send it to you in a box with a connector ready to go for a bit more money if that's what you would prefer.

Epic thread dig i know... BUT i read this thread recently and then went about actually getting it done! Here is the long awaited modern replacement to the oscillator box for the 240Z rally clock. The clock has exactly the same movement as the stock setup. This circuit completely replaces your old oscillator box and is driven by a super accurate microprocessor, instead of a tuning fork. We have a full working example after reverse engineering my own rally clock. It now keeps time more precisely than the factory unit and will be very reliable, with no moving components. We have also located a plug that will be compatible with the OEM harness for people wanting a plug in solution. You can see from the pictures that you can actually mount this PCB inside the clock it is so small. If you are interested, we are happy to supply just the circuit or an installed board depending on what you want. If you want a metal box from jaycar we can do that, or post us your original oscillator box and we can convert it. Let me know what you want! First run will be about 10 units so get in quick! PCB cost is $99AUD each which is 1/4 of the price of the actual oscillator box which may not work! https://youtu.be/FXkWDCBmsII https://youtu.be/hwJEogI84pw
