Combination Switch - Washer Button - Issues
Turns out, it's threaded and it had gotten bottomed out on the threads. I'm putting this here just in case someone else comes up with this issue and can't figure it out.
-
Combination Switch - Washer Button - Issues
So, since I'm between shows, I figured I'd get a little bit of tiny bits dealt with. I figured I'd do the combination switch. Everything was going fine, got all the plastic cleaned up and polished, cleaned up the contacts on the headlight/wipers/washer side, and then an issue popped up. The washer button is sitting too deep into the wiper section. I looked at the video I took while disassembling it (I figured I forget easily so I might as well) and I can't see anything that would cause such a thing. I thought I'd compare the rod for the washer button and the tube for the washer handle to see if there was a difference in length and it looks like the washer button sits fully on the washer handle tube and the start of the recessed section that the plastic retainer fits into comes flush to the base of the washer handle tube. Unfortunately, I have no idea if that's right because I didn't capture that bit on the video. I'm not moving on for this because there's really no point in that until I've got this solved. Does anyone have any ideas about what I'm missing?
-
ECU Connector
That's the part I'm looking for. Hussein, thanks for the link!
-
ECU Connector
I'm working on a minor project because I'm odd that way. I'm looking for the connector off of the stock ECU. I don't need the computer, just the connector that's on it. Anyone have any junk ECU's or have any ideas where I can find one?
-
Speaking of Experiments...
I knew I'd forgotten something!
-
1977 280z Dash Harness Connectors
I think that's a great idea...
-
1977 280z Dash Harness Connectors
Brother-In-Law's is an Anycubic Kobra (I want to say the Max version).
-
1977 280z Dash Harness Connectors
My brother-in-law has a 3D printer (I used it for the fuse box I posted about). I might be able to finagle some use out of it. No guarantees on timeliness, though.
-
Speaking of Experiments...
Part of what I'm planning is a fair amount of wiring adjustments to alleviate the heat from the parking lights and headlights. I think there's some discussion about relays and things. I've just got to spend a bit of time figuring out some of those things. Thankfully it's a long term project. I'll see what I can pull off for thermal testing.
-
Speaking of Experiments...
I've got a design that covers it, it just didn't print worth a damn (too small length wise, dunno why that happened the model fits).
-
Speaking of Experiments...
So, I decided I wanted to update the fuse box (it'll be one part of the electrical system plan), I designed one in Fusion360 and got it 3D printed by my brother in law (he's new to 3D printing and I haven't a clue about it). Here's what the result was. The back side didn't print real smooth, but I figure that's operator error. This is designed for full size blade fuses. I tested it with female spade connectors (snap-in) and a blade fuse. They fit and connect with a little tension. The mounting tabs/ears are spaced accordingly and are same general shape as the original (thickness might be a bit different.
-
STL File for 280Z Center Vent Panel
So, I did a scan of this panel. I don't have a 3D printer, but I thought that if anyone wanted to make an attempt at it or needed the part, I'd post it. I'm not real good with this whole 3D printing thing, but I'm having a good time playing with scanning these various parts. Here's the file. If anyone uses it, please let me know the results. Adjusted - 280Z AC Vent Cover - 2.stl
-
280Z Steering Column Shroud STL
I can scan them, but if you’ve got a spare cover…lol I’m trying to get as many of the plastic or rubber parts as I can modeled or made into STL files so they can be 3D printed for people who have that capability. After all, some of these parts are getting hard to get or are overly expensive (dome lights, strut tower caps, etc.) and 3D printing odds getting ubiquitous.
-
Resurrected Classics Continues to Impress with new Fenders Hatches and Bumpers!
Any chance y'all are looking at reproducing the rubber bumper pieces for the 75-76 280Z (2+2 preferably, lol!)?
-
280Z Steering Column Shroud STL
I'm looking for an STL file of the 76 (made 11/75) 280Z upper cover.
-
280Z Steering Column Shroud STL
Does anyone have the upper portion of a steering column shroud for a 76 (I don’t know if there are year differences) that they could get a good scan of or if they already have an STL of it, I’m in need of it. I’ve got my original lower that I’ll be scanning and making an STL of it so I can get one 3D printed. I’m planning on doing more scans and creating STLs of as many parts as I can. I’m using the PolyCAM app on my phone.
- Wheel Hub Differences
-
Wheel Hub Differences
Do you know if that's steel or cast iron?
-
Wheel Hub Differences
Cool, then I'll machine them to match.
-
Wheel Hub Differences
But the real question is: does it really make a difference for function?
-
Wheel Hub Differences
Yup, the only difference is the back side.
-
Wheel Hub Differences
It's completely clean (had to get it all clean to paint them!) and the edges are machined surfaces.
-
Wheel Hub Differences

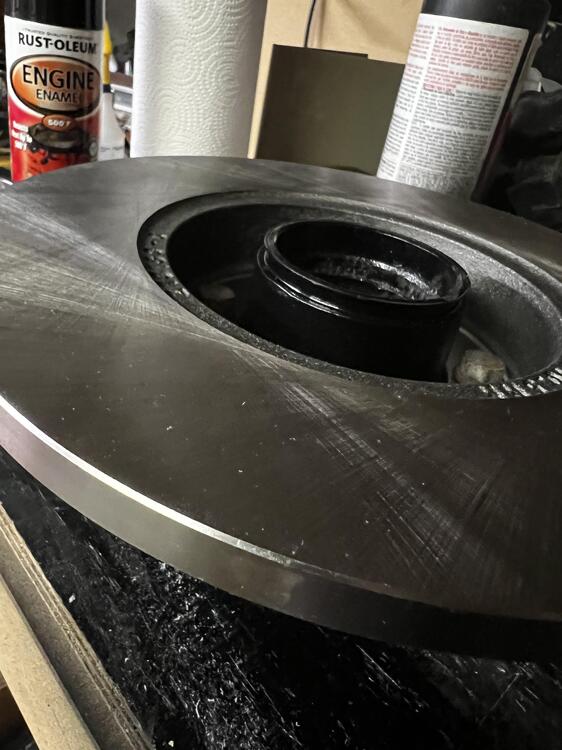

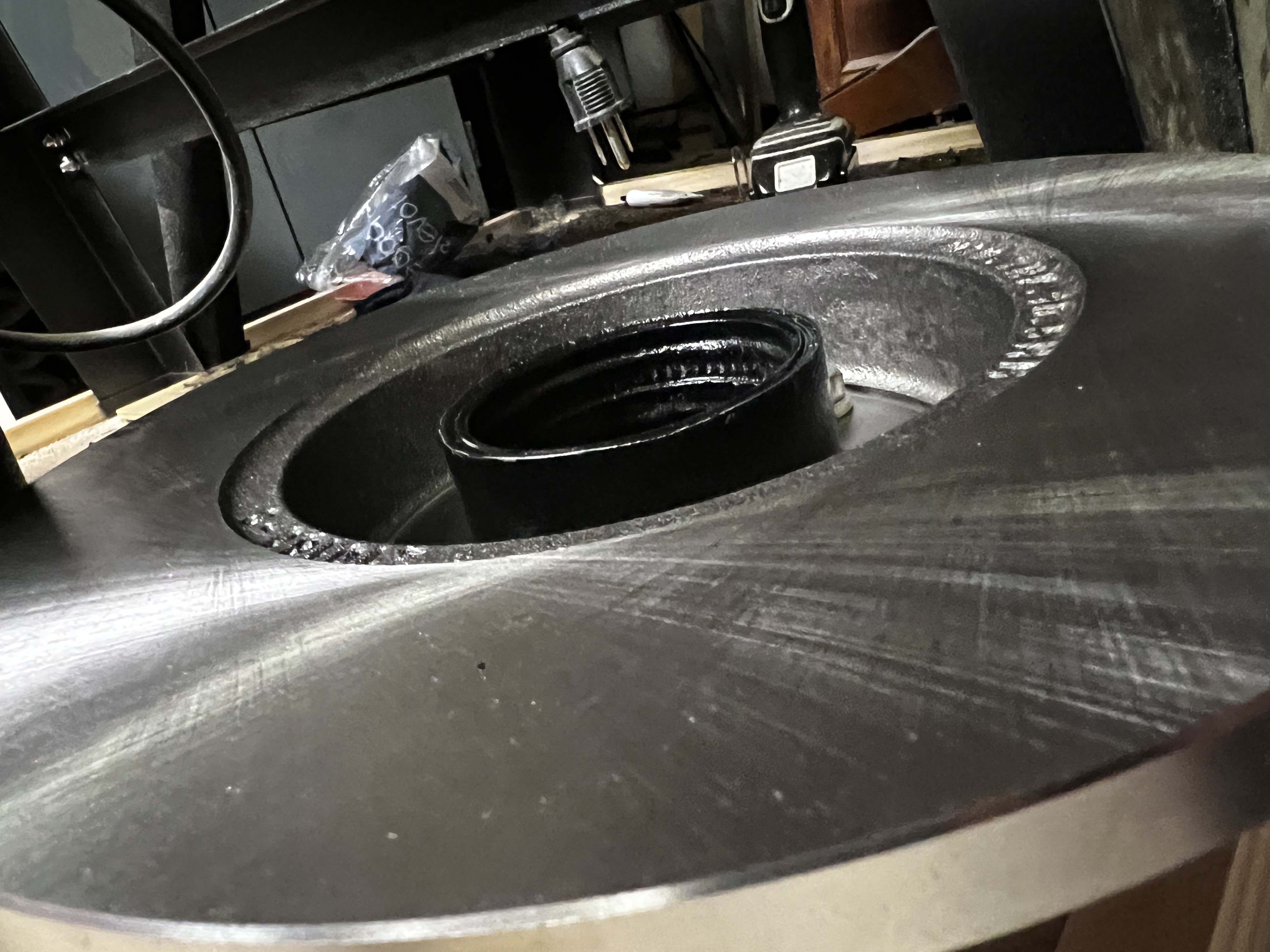

So, I've got a question about wheel hubs. I was putting the new rotors on my freshly cleaned up hubs. Once they were all together I noticed that the two hubs were not the same. I've owned this car since 1995. The previous owner was the first owner (bought it brand new in '76). I have never replaced the wheel hubs. I don't think he did either. However, the hubs are different, see attached pictures. The question: Do these differences actually matter?
-
1976 280Z 2+2 - Wiring Diagram - Non-California
Thanks so much for that! I never know where to do those sorts of things!
-
1976 Datsun 280Z - Wiring Diagram - Non-California
- 37 downloads
- Version 1.0.0
This is a wiring diagram created in Adobe Illustrated and saved as a PNG file. It is a large graphic file. This does not include California specific or Automatic Transmission specific components. This is for Federal, Manual Transmission, and Factory Air Conditioned 280Zs.Free- 1 review
-
-
