SteveJ

I saw nothing in the photos to support evidence of the switch shorting on the steering column. Here's a video I just made of a 240Z headlight switch to show the wires for the washer and how it works. I also attached a couple of photos for additional clarity. Please notice that the contacts for the washer switch are insulated from the screws holding them in place. Have you tested with a meter to see if the blue/white wire is grounded out? How about the blue/red wire?

The problem isn't likely to be the switch itself. The first thing I suggest is disconnect the wires from the motor on the washer pump. There should be a black wire and black/yellow wire. Use a multimeter set to resistance and touch the leads to each wire. If the resistance is low (like less than 10 Ohms), the problem is in the wiring. If the resistance is high, then the problem is with the pump motor. If it's in the wiring, find the connector highlighted in the attachment and separate it. Repeat the test at the wiper motor. If the resistance is low, the problem is in the engine harness. If the resistance is high, the problem is between the instrument harness and the switch.

Very nice work, @2377kN!

I know the owner of the 82. The car is VERY original and well taken care of. IMHO, there are two things working against that car as a periodic track car. It's a 280ZX. It's not as easy to modify for the track, and it's not really very fast. The t-tops also take out some rigidity. (You could always put bars in the openings I suppose.) I almost ran it over many times on a club cruise, and that was before I replaced my tired engine with a higher compression, angrier mill. The owner mandated that I move in front of him so I wouldn't ride his bumper. That car is pretty original. It is better suited for someone who is looking for a cruising/show car.

Well, if you can find another emergency switch, you can cut the connector off if it and jumper the wires together like I described. That is probably about the easiest way.

Any of the three solutions I provided should keep the Interlock Relay from interfering with starting. Good luck. Let us know what you do and how it worked.

Are you sure you got the harness for the same year Z? There are minor differences.

Have you looked at the logic of the switches in the BE section of the FSM? These workarounds focus on getting around the Interlock Relay shown highlighted in red in the first attachment. When the coil on this relay is energized, it keeps power away from the starter solenoid. Two solutions that I am sure that would work would require adding a jumper either at the Interlock Relay or at the Emergency Switch. The jumper would go between the Black/Yellow and Yellow/Black wires. There is one other solution that may work. If you disconnect the coil negative from ground on the Interlock Relay, that should defeat the seat belt interlock. From my reading of the wiring diagram it looks to be the Black/Red wire on the interlock unit. You want to disconnect this wire on the Interlock Unit side of the connector to prevent the chance of accidentally grounding the wire on the wire harness side.

With seeing many threads about losing pressure because of the check valve, I have to wonder if anybody has tried a check valve like this: https://www.amazon.com/Airtex-CV8000-Check-Valve-E8120/dp/B001NKS48G

On the 78, the Fuel Pump Relay relies on the Fuel Pump Control Relay for power to the coil. It does not rely on the AFM. The connection to the flap on the AFM are labeled as "USELESS" in the factory diagram. The Fuel Pump Control Relay relies on two signals combined to energize the the Fuel Pump Relay. The ignition must be on, and there must be oil pressure. The fuel pump does not come on with the starter. You will not see any voltage at the fuel pump when trying to start the car. If you want to see if you have voltage at the fuel pump, you have to jumper the two Green/Blue wires at the Fuel Pump relay. (The Green/Blue wire next to the White/Black wire on the connector for the Fuel Pump Relay should have 12VDC to ground all of the time since it is connected to the fusible link.) I am pretty sure the FSM in the resources section on this site has the wiring diagram. Just click on the Resources tab. This is a better alternative for a wiring diagram:

I haven't used Toyos on my Z. What size wheels do you have?

I just got word today. John Morton, 4 time SCCA champion driver for BRE, will be the Grand Marshal.

Yes, they can. However, the light output will still be below optimum if you are not getting enough voltage to them.

The best move is to get the headlight relay harness. Period. End. Light output is very dependent upon voltage. See https://www.dapperlighting.com/pages/wiring-harnesses-and-adapters Before I installed relays in my 73, I had 9 VDC at the headlight plug (car off), and it went to 12 VDC with the relays. That meant I was getting about twice as much light from the headlights (maybe more). If your alternator is struggling to keep up with the loads in the car, it's probably because of 1 of 2 things. 1. Your alternator is about to die. 2. You have too much non-stock crap wired into your car, like a huge stereo amp, etc.

Well, you could see if someone jumpered out the connection on the back of the tach. If it's jumpered out, it was probably because it was bad.

There are only a couple of wires involved. The Green/White (GW) wire comes from Start position on the key, goes through the tachometer, and comes out Black/White (BW). That BW wire goes to the positive of the coil. There is another BW wire. It comes off the ignition switch and goes out to the ballast resistor (and also branches off to the fuse box). On the other side of the ballast resistor is a GW wire that connects to the GW wire described above. Has the tach ever worked in the car since you owned it?

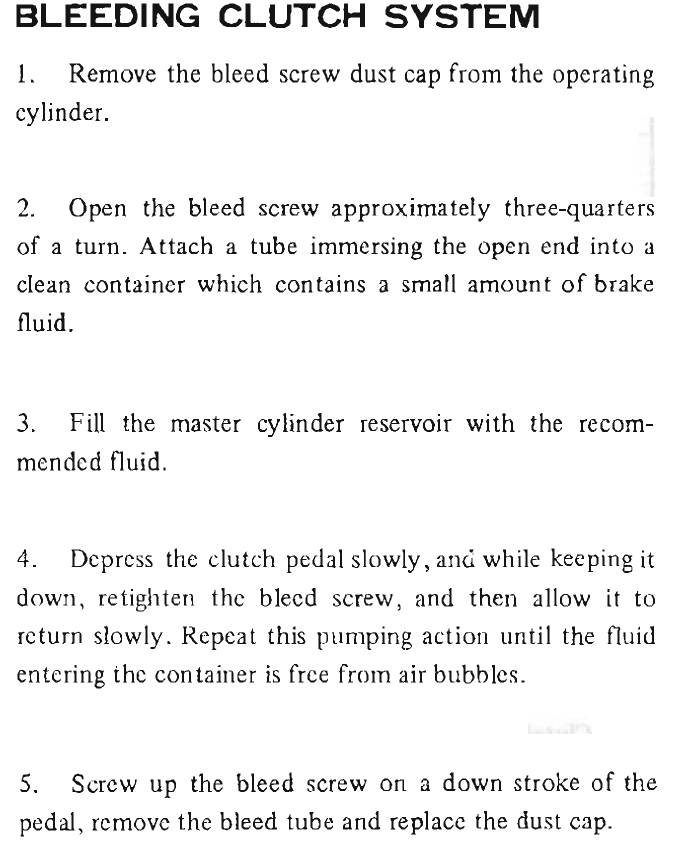

That is probably the most prudent course of action. That way you only have to bleed the system once.

I'm thinking that it might require some more in-depth diagnostics since you've had issues even after swapping out the switches.

I'll try to make a drive up when the weather gets warmer.

Look around the firewall where the Clutch Master comes through. Be sure to examine in the passenger compartment as well to see if the fluid came in through there.

Did you see any signs of brake fluid on the ground or anywhere in the engine bay?

Like I said, the photo seemed to distort the colors. I thought the third color was brown.

The flash distorts from the color, but from what it appears to be to me, it looks like 270 Ohm 5%. https://www.digikey.com/en/resources/conversion-calculators/conversion-calculator-resistor-color-code-4-band By the way, here are some mnemonics for the color code. The one I remember is listed in the offensive area. I learned it from a former Navy electrician when I was 14. https://en.wikipedia.org/wiki/List_of_electronic_color_code_mnemonics

I found the missing piece to the socket on my garage floor. The wire runs up through the button in the socket and is soldered in place. Somehow the solder joint weakened, and the wire came out. I removed the old solder from the button and ran the wire through it, soldering it back in place. If it holds for another 40 years, it will outlive me.

I'm not sure. The socket was not in good condition when I pulled out the bulb. All I know is that I can leave that light dark without any problems.
